Command which I using for building AVD system images is make sdk sdk_repo

Buen aplicación me caen bien👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍👍 la aplicación de maravilla 🤦‍♀️🤦‍♀️🤦‍♀️🤦‍♀️🤦‍♀️🤦‍♀️❤ bueno de pana la mejor aplicación del mundo🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍🌍 en serio de verda muy buena la

Same problem here.

I added MODULE_BUILD_FROM_SOURCE := true into build/make/target/product/sdk_phone_x86_64.mk as per the above link suggestion. Build has gone through but I am not able to find sdk-repo-linux-system-images-eng.[username].zip in out/host/linux-x86/sdk/sdk_car_x86_64 folder

Lunch option is sdk_car_x86_64-userdebug. Since, there is no sdk_car_x86_64.mk file in build/make/target/product/ repo, so I added MODULE_BUILD_FROM_SOURCE := true into build/make/target/product/sdk_phone_x86_64.mk and build has gone through. But sdk-repo-linux-system-images-eng.[username].zip is missing in out folder.

It doesn't work, it gives the same build error. But I tried into different mk file (device/generic/goldfish/vendor.mk) and here also Build has gone through and sdk-repo-linux-system-images-eng.[username].zip is missing

Hi,

I can build&run sdk_car_x86_64-userdebug with lunch sdk_car_x86_64-userdebug && make installclean && m -j && emulator on android-13.0.0_r24. I believe the conscrypt error was resolved in a later tag.

To get the dist zip, I ran: build/soong/soong_ui.bash --make-mode TARGET_PRODUCT=$TARGET_PRODUCT TARGET_BUILD_VARIANT=userdebug droid dist emu_img_zip.

Can you please try this steps to see if it works?

Thanks!

Hi,

I have tried to build avd with command build/soong/soong_ui.bash --make-mode TARGET_PRODUCT=$TARGET_PRODUCT TARGET_BUILD_VARIANT=userdebug droid dist emu_img_zip and it is generating sdk-repo-linux-system-images-eng.[username].zip. However, while launching emulator I have to use command emulator @AVD_name -skin 1200x800 otherwise there is no boot animation and launcher.

Please provide proper solution for command make sdk sdk_repo

If I'm running make sdk sdk_repo I get

• out/host/linux-x86/sdk containing the framework files
• out/host/linux-x86/sdk-repo containing the platform-tools and build-tools zip

Running make emu_imgs_zip created out/target/product/emulator_car_x86_64/sdk-repo-linux-system-images-eng.$(whoami).zip.

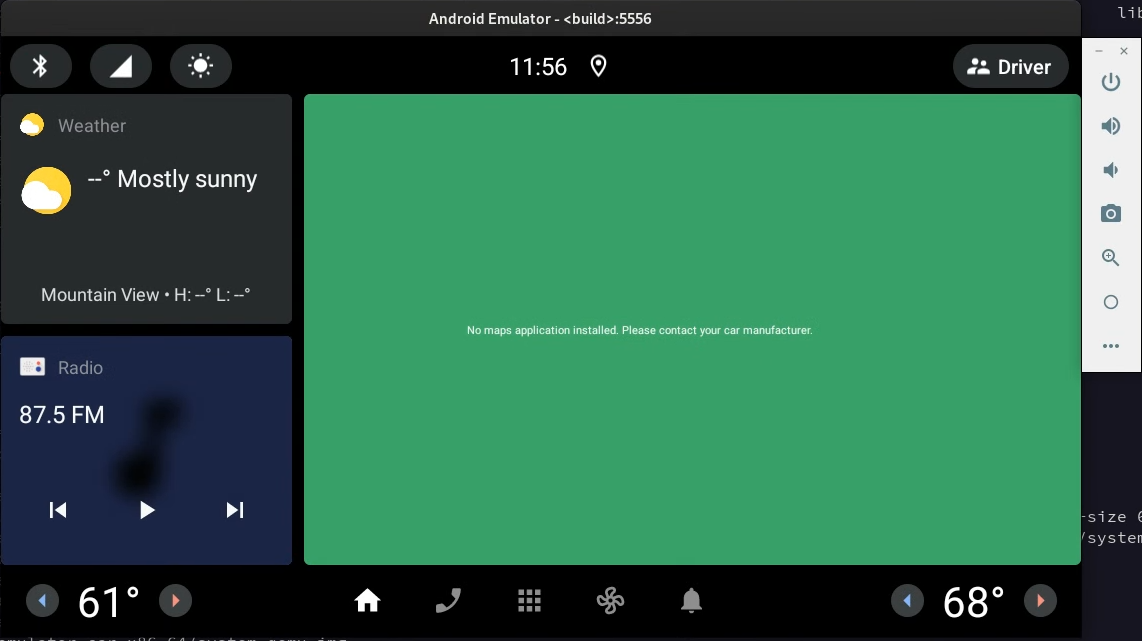

After running lunch sdk_car_x86_64-userdebug && make installclean && m -j && emulator I get a successful build and emulator launches. Pls see screenshot attached.

If you need to use emulator @AVD_name, you would likely run an emulator from your Android Studio/SDK install (from ~/.android/avd) using the emulator binary in prebuilts/android-emulator, which is likely not what you want.

If you want to install the created sdk-repo-linux-system-images-eng.$(whoami).zip:

• You can overwrite an existing install in your $ANDROID_HOME/system-images/...
• or you can install the image in Android Studio, but you need to create a repo xml file using the format below (please update the size,checksum,url at least); then add a new update site in SDKManager (file:///path/to/xml; notice the 3x /).

<?xml version="1.0"?>
<sdk:sdk-sys-img
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:sdk="http://schemas.android.com/sdk/android/repo/sys-img2/01">
    <remotePackage path="system-images;android-33;sdk_car_x86_64-userdebug;x86_64">
        <type-details xsi:type="sdk:sysImgDetailsType">
            <api-level>33</api-level>
            <tag>
                <id>android-automotive-playstore</id>
                <display>sdk_car_x86_64-userdebug-mybuild</display>
            </tag>
            <abi>x86_64</abi>
        </type-details>
        <revision>
            <major>1</major>
        </revision>
        <display-name>sdk_car_x86_64-userdebug-mybuild</display-name>
        <archives>
            <archive>
                <complete>
                    <size>UPDATE_THIS_BYTES</size>
                    <checksum type='sha1'>UPDATE_THIS_SHA1</checksum>
                    <url>sdk-repo-linux-system-images-UPDATE_THIS.zip</url>
                </complete>
            </archive>
        </archives>
    </remotePackage>
</sdk:sdk-sys-img>

Otherwise, what you explained looks good. I think you have successfully built the target that should work.

Hi,

First of all make sdk sdk_repo doesn't work, I was getting error which I already mentioned in bug[comment #1]. Even make emu_imgs_zip command also not working. See the error:

[100% 8039/8039] Package: out/target/product/emulator_car_x86_64/sdk-repo-linux-system-images-eng.username.zip FAILED: out/target/product/emulator_car_x86_64/sdk-repo-linux-system-images-eng.username.zip /bin/bash -c "(mkdir -p out/target/product/emulator_car_x86_64/emulator/x86_64 ) && (prebuilts/build-tools/linux-x86/bin/acp out/target/product/emulator_car_x86_64/ob j/NOTICE.txt out/target/product/emulator_car_x86_64/emulator/x86_64/NOTICE.txt; prebuilts/build-tools/linux-x86/bin/acp out/target/product/emulator_car_x86_64/obj/so urce.properties out/target/product/emulator_car_x86_64/emulator/x86_64/source.properties; prebuilts/build-tools/linux-x86/bin/acp out/target/product/emulator_car_x86 64/system/build.prop out/target/product/emulator_car_x86_64/emulator/x86_64/build.prop; prebuilts/build-tools/linux-x86/bin/acp out/target/product/emulator_car_x86 64/VerifiedBootParams.textproto out/target/product/emulator_car_x86_64/emulator/x86_64/VerifiedBootParams.textproto; prebuilts/build-tools/linux-x86/bin/acp device/g eneric/goldfish/data/etc/encryptionkey.img out/target/product/emulator_car_x86_64/emulator/x86_64/encryptionkey.img; prebuilts/build-tools/linux-x86/bin/acp device/g eneric/goldfish/data/etc/userdata.img out/target/product/emulator_car_x86_64/emulator/x86_64/userdata.img; prebuilts/build-tools/linux-x86/bin/acp device/generic/gol dfish/data/etc/google/./userdebug/advancedFeatures.ini out/target/product/emulator_car_x86_64/emulator/x86_64/advancedFeatures.ini ) && ((prebuilts/build-tools/linux- x86/bin/acp kernel/prebuilts/5.15/x86_64/kernel-5.15 out/target/product/emulator_car_x86_64/emulator/x86_64/kernel-ranchu) ) && (prebuilts/build-tools/linux-x86/bin/a cp -r out/target/product/emulator_car_x86_64/data out/target/product/emulator_car_x86_64/emulator/x86_64 ) && (out/host/linux-x86/bin/soong_zip -o out/target/product/ emulator_car_x86_64/sdk-repo-linux-system-images-eng.username.zip -C out/target/product/emulator_car_x86_64/emulator -D out/target/product/emulator_car_x86_64/emulator /x86_64 )" acp: file 'out/target/product/emulator_car_x86_64/data' does not exist 16:30:22 ninja failed with: exit status 1

I am not sure this issue already solved into android-13.0.0_r24 branch but I am using android-13.0.0_r3.
Next thing is I am using -skin 1200x800 option because there is also issue reported by another user and issue id is 243852347. And Yes, I installed system image into sdk which you also explained in same way.

Let me know if need more information.

Thank you for investigating this and reporting back!

Both the screen size issue and the build problem around conscrypt are fixed on aosp-master. I can only recommend using a later revision as many fixes were done since r3 that is about a half year old.

Are there any issues blocking you from using something newer that has the fix?

Hi,

I installed android-13.0.0_r24 branch as you suggested. But while building emulator system image through make sdk sdk_repo command, I am getting new error now:

FAILED: out/soong/build.ninja cd "$(dirname "out/host/linux-x86/bin/soong_build")" && BUILDER="$PWD/$(basename "out/host/linux-x86/bin/soong_build")" && cd / && env -i "$BUILDER" --top "$TOP" --soong_out "out/soong" --out "out" -o out/soong/build.ninja --globListDir build --globFile out/soong/globs-build.ninja -t -l out/.module_paths/Android.bp.list --available_env out/soong/soong.environment.available --used_env out/soong/soong.environment.used.build Android.bp error: packages/modules/RuntimeI18n/apex/Android.bp:67:1: dependency "art-bootclasspath-fragment" of "i18n-bootclasspath-fragment" missing variant: apex:com.android.art available variants: os:android,arch:common error: packages/modules/RuntimeI18n/apex/Android.bp:67:1: dependency "prebuilt_art-bootclasspath-fragment" of "i18n-bootclasspath-fragment" missing variant: apex:com.android.art available variants: os:android,arch:common 00:05:16 soong bootstrap failed with: exit status 1

So, I used alternate command make emu_img_zip which generates out/target/product/emulator_car_x86_64/sdk-repo-linux-system-images-eng.$(whoami).zip file. And I can also see that skin size issue got solved.

Can we also have solution for make sdk sdk_repo command ?

https://drive.google.com/file/d/1-vQqBuaIVtetnVQC1vR2n3g-aBSTOwQQ/view?usp=drive_web (takeout-20230125T152047Z-001 (1).zip)

https://drive.google.com/file/d/1-vQqBuaIVtetnVQC1vR2n3g-aBSTOwQQ/view?usp=drive_web (takeout-20230125T152047Z-001 (1).zip)

So, I will summarize this issue:

• make sdk sdk_repo is obsolete build command and won't work in Android 13 onwards
• Use alternate make emu_img_zip command to generate emulator system image (varified in android-13.0.0_r24)

Please correct/add if I missed any point.
Kindly update the document to avoid confusion.
