Fixed
Status Update
No update yet.
Comments
ap...@google.com
Project: platform/frameworks/support
Branch: androidx-main
commit 3283536a57f7caf087786f6030f6bf246489df85
Author: Chris Craik <ccraik@google.com>
Date: Fri Feb 02 16:27:30 2024
Speculative fix for Failed to stop [ProcessPid(processName=perfetto...
Bug: 323601788
Bug: 307649002
Relnote: "Adjusted data source timeouts to attempt to fix java.lang.IllegalStateException: Failed to stop [ProcessPid(processName=perfetto, pid=...)]"
Test: ./gradlew bench:b-m:cC
Change-Id: I8dc7d5091ea1a8e68cb5effb21363f1c3196cf56
M benchmark/benchmark-common/src/main/java/androidx/benchmark/perfetto/PerfettoConfig.kt
M benchmark/benchmark-common/src/main/java/androidx/benchmark/perfetto/PerfettoHelper.kt
https://android-review.googlesource.com/2947370
Branch: androidx-main
commit 3283536a57f7caf087786f6030f6bf246489df85
Author: Chris Craik <ccraik@google.com>
Date: Fri Feb 02 16:27:30 2024
Speculative fix for Failed to stop [ProcessPid(processName=perfetto...
Bug: 323601788
Bug: 307649002
Relnote: "Adjusted data source timeouts to attempt to fix java.lang.IllegalStateException: Failed to stop [ProcessPid(processName=perfetto, pid=...)]"
Test: ./gradlew bench:b-m:cC
Change-Id: I8dc7d5091ea1a8e68cb5effb21363f1c3196cf56
M benchmark/benchmark-common/src/main/java/androidx/benchmark/perfetto/PerfettoConfig.kt
M benchmark/benchmark-common/src/main/java/androidx/benchmark/perfetto/PerfettoHelper.kt
na...@google.com
This is expected to be fixed with the change above, which made it into 1.3.0-alpha01.
Please let us know if you still see this issue after updating to that version
Description
Macrobenchmark FrameTimingMetric makes a couple assumptions that I'm not seeing hold true on the trace above:

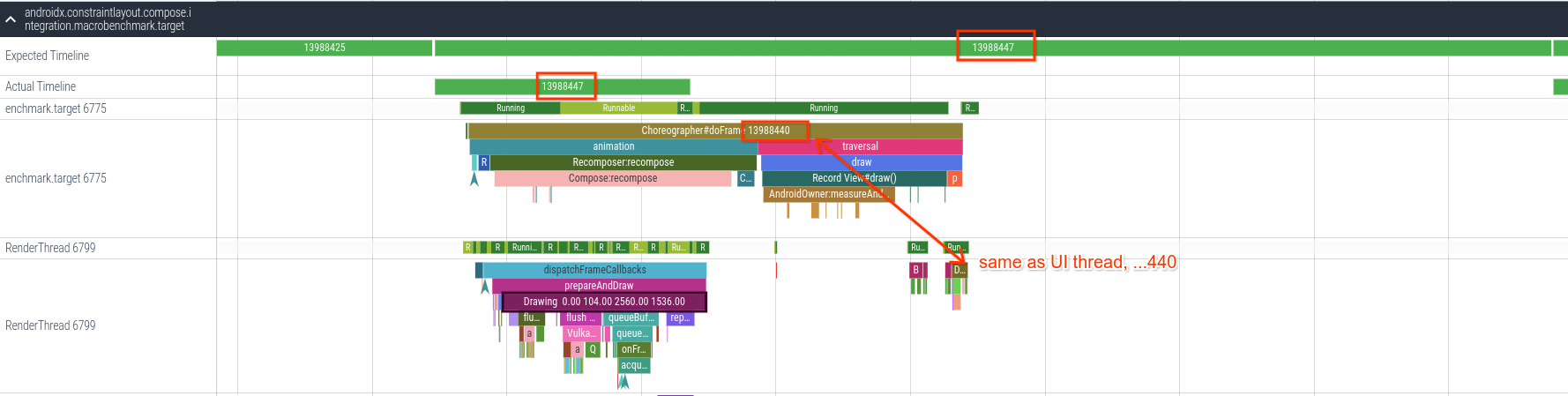

actual <nr>expected <nr>Choreographer#doFrame <nr>DrawFrame <nr>Note: we observe instead that frame numbers for actual/expected get out of sync, see screenshot.
Note: we observe instead that the actual frame is wrapping a separate renderthread render
The problem
Together, these mean that macrobenchmarks drop many frames, and don't report them as part of metrics. In this scenario (MotionLayoutBenchmark#messageJson), it's roughly ~100 frames dropped out of ~140.
See also
