Status Update
No update yet.
Comments
ku...@google.com
di...@google.com
an...@gmail.com

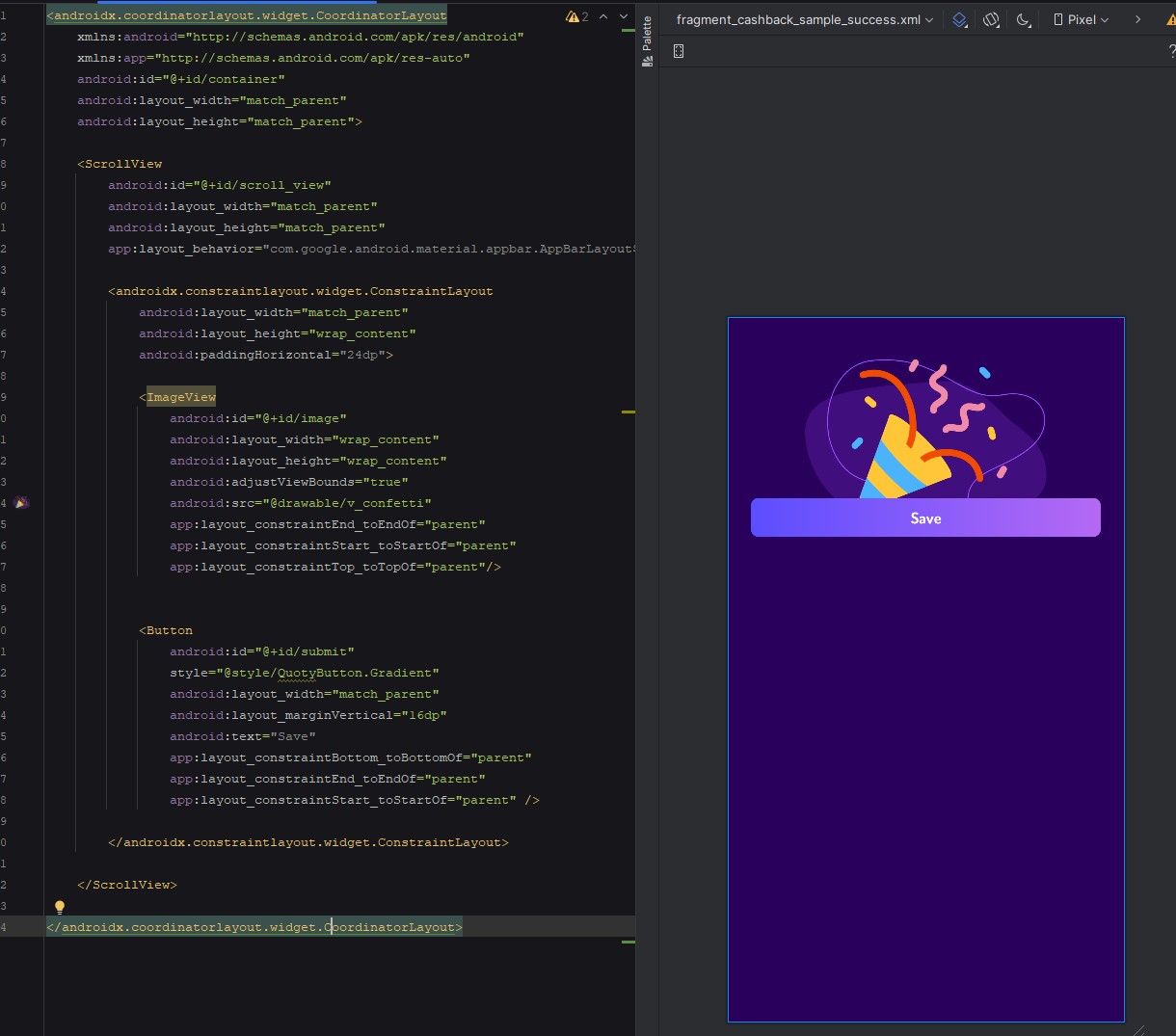

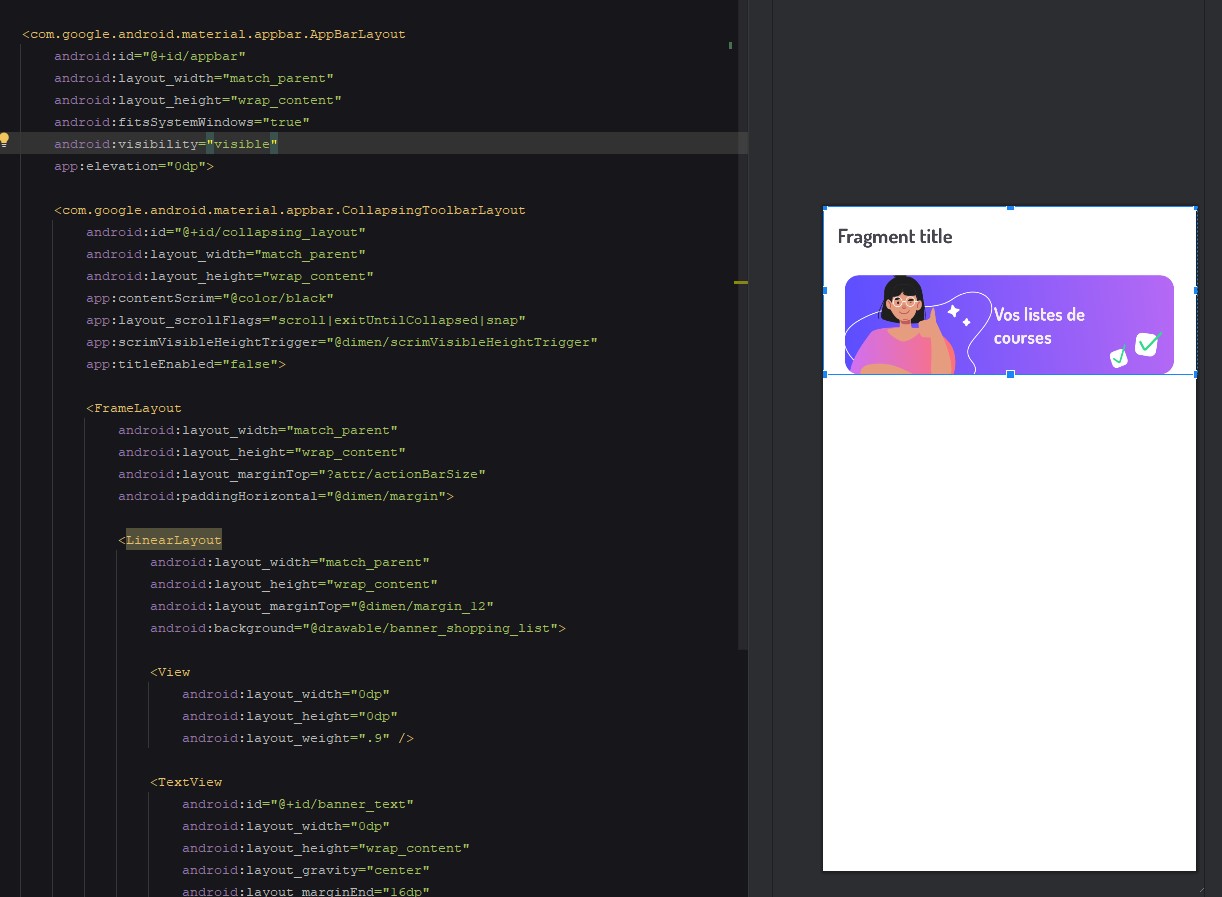

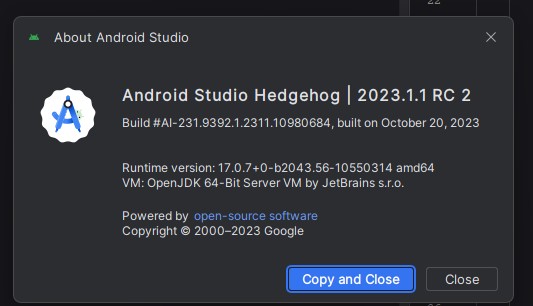

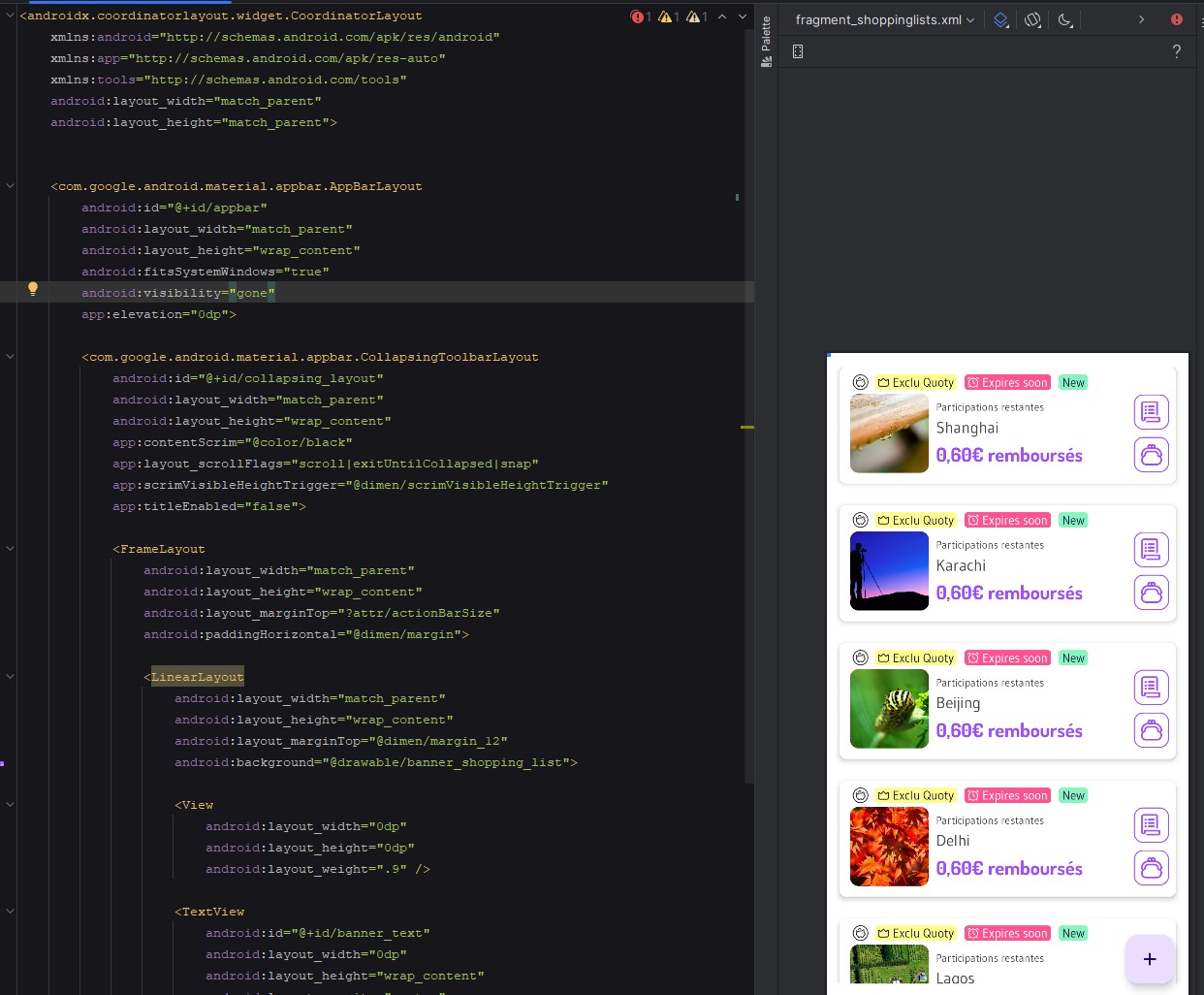

Since this doesn't seem to be getting fixed any time soon, I figured I try the Hedgehog RC. The bug is present there as well. I attached screenshots. For now, the only fix is adding "tools:layout_behavior="@string/appbar_scrolling_view_behavior" to AppBarLayout
Description
After updating Android Studio Giraffe from Patch 1 to Patch 2, all my layouts fail to render in the Preview Editor if I use an AppBarLayout.
STEPS TO REPRODUCE:
1. create a layout in xml with any components
2. create a layout with an AppBarLayout
3. include the AppBarLayout in the first layout, and now everything dissapears
ATTACH SCREENSHOTS/RECORDINGS OF THE ISSUE
ATTACH LOG FILES (Select Help > Show Log in Files, or Show Log in Finder on a Mac)
------------------
IMPORTANT: Please read
all required information.
------------------
Android Studio Giraffe | 2022.3.1 Patch 2
Build #AI-223.8836.35.2231.10811636, built on September 15, 2023
Runtime version: 17.0.6+0-b2043.56-10027231 amd64
VM: OpenJDK 64-Bit Server VM by JetBrains s.r.o.
Windows 11 10.0
GC: G1 Young Generation, G1 Old Generation
Memory: 4096M
Cores: 8
Registry:
external.system.auto.import.disabled=true
debugger.new.tool.window.layout=true
ide.text.editor.with.preview.show.floating.toolbar=false
ide.experimental.ui=true
ide.balloon.shadow.size=0
Non-Bundled Plugins:
com.intellij.marketplace (223.8836.56)
String Manipulation (9.11.3)
Dart (223.8950)
com.localizely.flutter-intl (1.18.4-2022.2)
org.intellij.plugins.markdown (223.8617.3)
com.thoughtworks.gauge (223.7571.182)
mobi.hsz.idea.gitignore (4.4.4)
io.flutter (75.1.2)
The "appbar layout":
<com.google.android.material.appbar.AppBarLayout
xmlns:android="
xmlns:app="
xmlns:tools="
android:id="@+id/appbar"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:fitsSystemWindows="true">
<com.google.android.material.appbar.MaterialToolbar
android:id="@+id/toolbar"
android:layout_width="match_parent"
android:layout_height="?attr/actionBarSize"
app:contentInsetStartWithNavigation="0dp"
tools:title="Fragment title" />
</com.google.android.material.appbar.AppBarLayout>

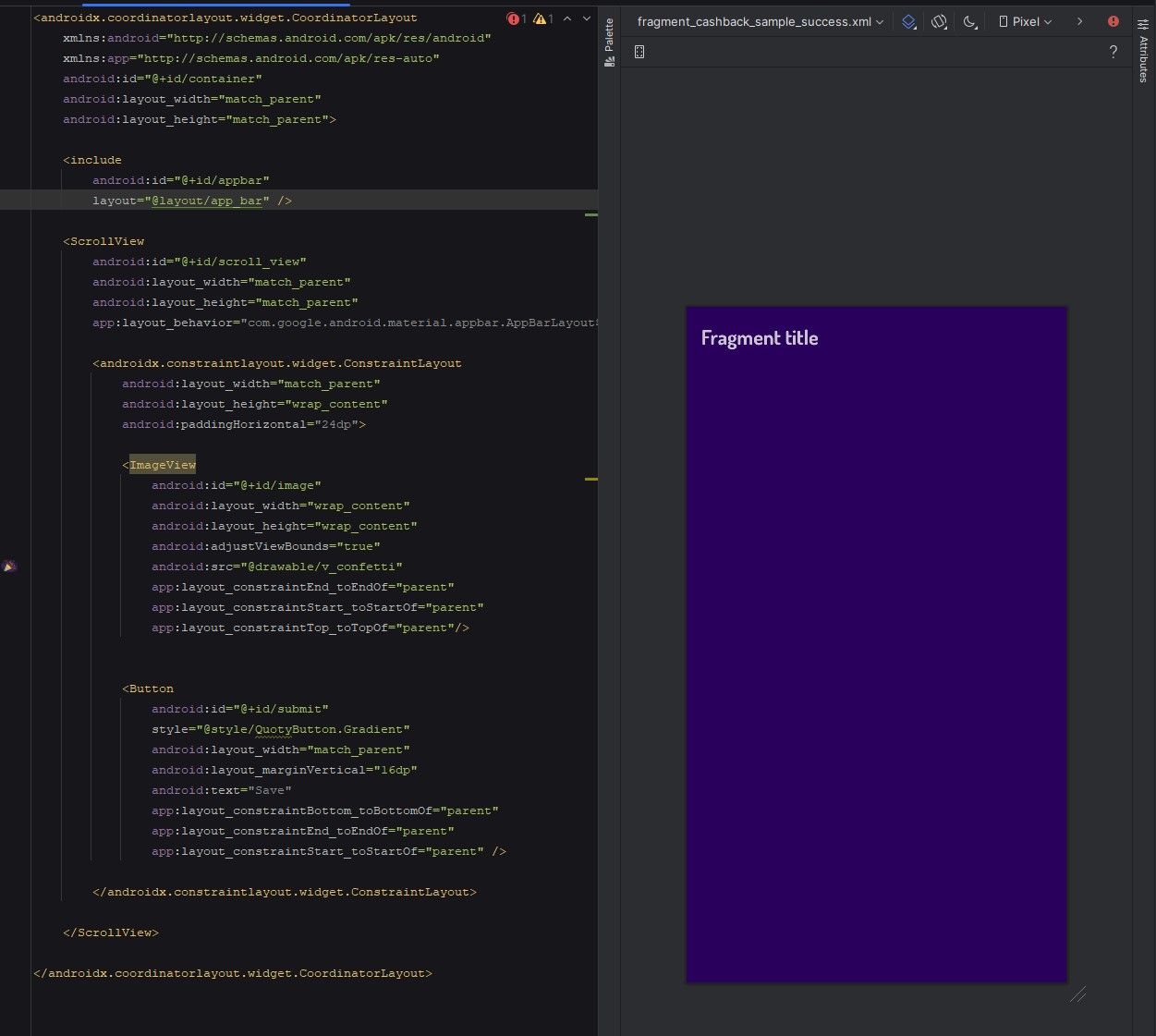

The layout that fails to render when including the appbar ( this used to work in Patch 1):
<androidx.coordinatorlayout.widget.CoordinatorLayout
xmlns:android="
xmlns:app="
android:id="@+id/container"
android:layout_width="match_parent"
android:layout_height="match_parent">
<include
android:id="@+id/appbar"
layout="@layout/app_bar" />
<ScrollView
android:id="@+id/scroll_view"
android:layout_width="match_parent"
android:layout_height="match_parent"
app:layout_behavior="@string/appbar_scrolling_view_behavior">
<androidx.constraintlayout.widget.ConstraintLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:paddingHorizontal="@dimen/margin">
<ImageView
android:id="@+id/image"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:adjustViewBounds="true"
android:src="@drawable/v_confetti"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
app:layout_constraintTop_toTopOf="parent"/>
<Button
android:id="@+id/submit"
style="@style/QuotyButton.Gradient"
android:layout_width="match_parent"
android:layout_marginVertical="16dp"
android:text="@string/save"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent" />
</androidx.constraintlayout.widget.ConstraintLayout>
</ScrollView>
</androidx.coordinatorlayout.widget.CoordinatorLayout>
The error in android studio:
java.lang.NoClassDefFoundError: Could not initialize class androidx.core.view.accessibility.AccessibilityNodeInfoCompat$AccessibilityActionCompat
at com.google.android.material.appbar.AppBarLayout$BaseBehavior.updateAccessibilityActions(AppBarLayout.java:1882)
at com.google.android.material.appbar.AppBarLayout$BaseBehavior.setHeaderTopBottomOffset(AppBarLayout.java:2118)
at com.google.android.material.appbar.AppBarLayout$BaseBehavior.setHeaderTopBottomOffset(AppBarLayout.java:1446)
at com.google.android.material.appbar.HeaderBehavior.setHeaderTopBottomOffset(HeaderBehavior.java:158)
at com.google.android.material.appbar.AppBarLayout$BaseBehavior.onLayoutChild(AppBarLayout.java:1781)
at com.google.android.material.appbar.AppBarLayout$Behavior.onLayoutChild(AppBarLayout.java:1427)
at com.google.android.material.appbar.AppBarLayout$BaseBehavior.onLayoutChild(AppBarLayout.java:1446)
at androidx.coordinatorlayout.widget.CoordinatorLayout.onLayout_Original(CoordinatorLayout.java:918)
at androidx.coordinatorlayout.widget.CoordinatorLayout.onLayout(CoordinatorLayout.java)
at android.view.View.layout_Original(View.java:23694)
at android.view.View_Delegate.layout(View_Delegate.java:91)
at android.view.View.layout(View.java:23680)
at android.view.ViewGroup.layout(ViewGroup.java:6413)
at android.widget.FrameLayout.layoutChildren(FrameLayout.java:332)
at android.widget.FrameLayout.onLayout(FrameLayout.java:270)
at android.view.View.layout_Original(View.java:23694)
at android.view.View_Delegate.layout(View_Delegate.java:91)
at android.view.View.layout(View.java:23680)
at android.view.ViewGroup.layout(ViewGroup.java:6413)
at android.widget.RelativeLayout.onLayout(RelativeLayout.java:1103)
at android.view.View.layout_Original(View.java:23694)
at android.view.View_Delegate.layout(View_Delegate.java:91)
at android.view.View.layout(View.java:23680)
at android.view.ViewGroup.layout(ViewGroup.java:6413)
at android.widget.FrameLayout.layoutChildren(FrameLayout.java:332)
at android.widget.FrameLayout.onLayout(FrameLayout.java:270)
at android.view.View.layout_Original(View.java:23694)
at android.view.View_Delegate.layout(View_Delegate.java:91)
at android.view.View.layout(View.java:23680)
at android.view.ViewGroup.layout(ViewGroup.java:6413)
at com.android.layoutlib.bridge.impl.RenderSessionImpl.inflate(RenderSessionImpl.java:377)
at com.android.layoutlib.bridge.Bridge.createSession(Bridge.java:450)
at com.android.tools.idea.layoutlib.LayoutLibrary.createSession(LayoutLibrary.java:122)
at com.android.tools.idea.rendering.RenderTask.createRenderSession(RenderTask.java:701)
at com.android.tools.idea.rendering.RenderTask.lambda$inflate$8(RenderTask.java:848)
at com.android.tools.idea.rendering.RenderExecutor$runAsyncActionWithTimeout$3.run(RenderExecutor.kt:200)
at com.android.tools.idea.rendering.RenderExecutor$PriorityRunnable.run(RenderExecutor.kt:298)
at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
at java.base/java.lang.Thread.run(Thread.java:833)
