After moving to App Bundles we are getting some resource not found and app crashes [120625421]

Duplicate

of 111233819

Bug

Status Update

No update yet.

Description

ma...@gmail.com

created issue #1

Dec 7, 2018 02:33AM

When we migrated to App Bundles a number of user's devices started crashing on the first screen. We error was resource not found. This is the first resource that is displayed in our app.

android.content.res.Resources$NotFoundException: File res/drawable/splash_logo.xml from drawable resource ID #0x7f08018a
at android.app.ActivityThread.performLaunchActivity(ActivityThread.java:2298)
at android.app.ActivityThread.handleLaunchActivity(ActivityThread.java:2358)
at android.app.ActivityThread.access$800(ActivityThread.java:144)
at android.app.ActivityThread$H.handleMessage(ActivityThread.java:1278)
at android.os.Handler.dispatchMessage(Handler.java:102)
at android.os.Looper.loop(Looper.java:135)
at android.app.ActivityThread.main(ActivityThread.java:5219)
at java.lang.reflect.Method.invoke(Method.java)
at java.lang.reflect.Method.invoke(Method.java:372)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:898)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:693)

Our app id =

au.com.auspost.android and version code 134

This was reported on the following devices ;
Sony - G8141 a
LGE - Nexus 5x, LG-AS110, LGU997
ZTE - ZTE T84

We are currently using the following libraries and tools;
Build tools 28.0.3
target_sdk = 28
min_sdk = 21
support libraries version 28.0.0
firebase version 15.0.2
gms version 15.0.1

Comments

je...@google.com <je...@google.com> Dec 7, 2018 04:52AM

Assigned to im...@google.com.

im...@google.com <im...@google.com> Dec 7, 2018 10:26AM

Status: Duplicate of

111233819

ma...@gmail.com <ma...@gmail.com> #2Mar 14, 2019 03:29AM

In our situation, the app was crashing when trying to find the splash_logo. We definitely in our project.

splash_logo.xml
<?xml version="1.0" encoding="utf-8"?>
<layer-list xmlns:android="

http://schemas.android.com/apk/res/android">

<item>
<color android:color="@color/windowBackground"/>
</item>

<item android:bottom="@dimen/AP_6_unit">
<bitmap android:gravity="center"
android:src="@drawable/ic_logo"/>
</item>
</layer-list>

theme.xml
<style name="Theme.AP.NoAnimation.StartActivity">
<item name="android:windowFullscreen">true</item>
<item name="android:windowBackground">@drawable/splash_logo</item>
</style>

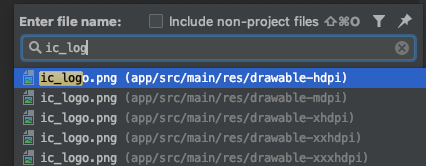

Screen Shot 2019-03-14 at 2.24.54 pm.png

33 KB

View

Download

im...@google.com <im...@google.com> #3Mar 14, 2019 11:40AM

What version of android gradle plugin are you using?

ma...@gmail.com <ma...@gmail.com> #4Mar 14, 2019 10:23PM

Hi,

At the time we tried app bundles we were using android gradle plugin 3.1.3., now we are using 3.2.1 but haven't tried app bundles again.

ca...@instantbits.com <ca...@instantbits.com> #5Apr 15, 2019 01:25PM

I've had this exact same issue. I had to switch my splash background to a single png to get it to work for most people but that looks awful. Mine was very similar to yours, a background with an image in the center.
