Thank you for posting.

We'll need some more details to troubleshoot this issue - please provide the following, in particular steps to reproduce the issue:

1. Put together a simplified reproduction case (http://sscce.org/) and add it to a git hosting provider (e.g. github, bitbucket, etc)? The easiest way to do this might be to fork the Google Maps Android API Samples Repository and modify one of the existing demo activities: https://github.com/googlemaps/android-samples

2. List steps to reproduce the problem

3. Attach the following:

• screenshots
• sample code

Thank you for waiting.

We have verified and logged this issue internally. Please note that we cannot give you any timelines, but you can star the issue to get notifications.

We appreciate your patience.

After further checking, it looks like that the issue mentioned is working as intended. To fix the buildings being on top of the layer, you can disable the buildings by using the setBuildingsEnabled. Thank you!

Thank you for your feedback. We are reviewing this issue again.

We would like to offer another workaround in case you need to show buildings: use map styling, either Cloud styling or JSON styling.

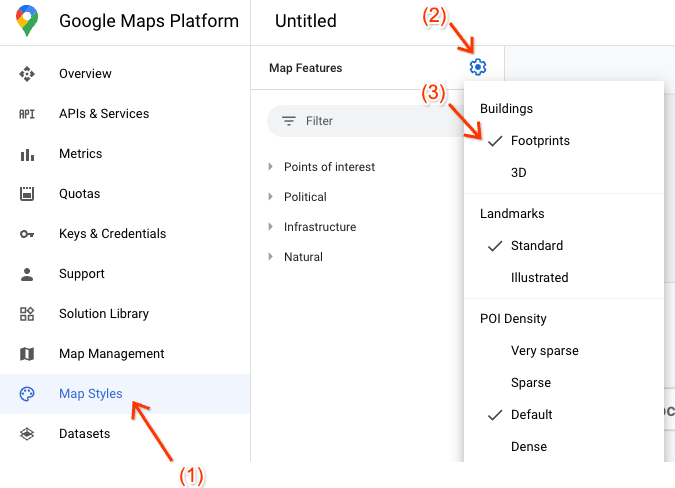

• Using Cloud styling: customize a Map Style to show building footprints instead of its 3D model by clicking the Settings icon, and then select Buildings > Footprints. See the attached cloud_styling.png.
  • Please note that a map load using Cloud styling is counted as Dynamic Maps and is charged.
• Using JSON styling: edit the JSON style file and change the color attribute for landscape.man_made > geometry.fill to be translucent (for example, change color #aabbcc to #80aabbcc). Then the GeoJsonLayer can be seen through the buildings.
  • Tip: it is useful to keep landscape.man_made > geometry.stroke color non-translucent, so that the building outlines can be seen easier.
  • A map load using JSON styling is counted as Mobile Native Dynamic Maps and is not charged.

Please let us know if this is sufficient for your use cases or not.

This is a total bs. You completely change maps behavior, saying it's "intended behavior" when it never was, and all this is to force users to use cloud styling, so you could charge money for it. Your so-called "workaround" for JSON styling looks like crutches to me. If I set completely transparent colors, 3d buildings disappear completely, because they don't have borders. Any non-transparent color looks like sh**t. Although, landscape.man_made is used not only for 3d buildings, it affects other objects of a map. So you should either change this behavior like it always was, or add some option to draw polylines/polygons etc. over 3d buildings, or an option to turn 3d buildings into flat ones

There are 2 downsides of landscape.man_made:

1. Google maps shows building in two colors, one closer to yellow and the other one to gray. landscape.man_made does not support that - only one color for all buildings.
2. landscape.man_made > geometry.fill impacts background color near the buildings as result buildings blend with background, harder to distinguish.

JSON styling is not sufficient enough to match previous UX. This prevents us from updating to 19.0.0. as we want to show semi-transparent polygons that are also on top of buildings.

Thank you for all the feedback. We are working to improve the Latest renderer regarding this behavior. We will update again with more details on the improvements.

#14: this behavior happens on the Latest/new renderer.

Client library 18.1.0 and older previously defaulted to the Legacy renderer so the behavior didn't happen. However, we had recently completed automatic migration to the Latest renderer. That means all apps that don't specify a preferred renderer will get the Latest renderer, regardless of the client library version.

If this behavior impacts your use case significantly, please explicitly specify the Legacy renderer when initializing Maps SDK: https://developers.google.com/maps/documentation/android-sdk/renderer#opt-out

Hello all, I have updated the priority to reflect that this issue is high in our priority list. We are still discussing this issue internally and have not made any decisions yet, but we are considering options including adding a new API to specify whether layers and drawings should be rendered under or over the 3D buildings, what the default should be, and how we should roll this out. We will update here again when the plan is more concrete. Thank you for your patience.

Update: after cross-team discussions, we decided to align the Latest renderer's behavior with the Legacy renderer, that is 3D buildings will be rendered under GeoJsonLayer. This will also align the behavior of Maps SDK for Android with Maps SDK for iOS. We plan to implement and roll this out by the end of the year.

If an API to modify this behavior is needed, we would like to ask you to file a feature request.

Definitely, we will update here when we roll out the change.

#24: the release ETA is by the end of the year. If you need the Legacy renderer behavior urgently, please explicitly specify the Legacy renderer when initializing Maps SDK: https://developers.google.com/maps/documentation/android-sdk/renderer#opt-out

The implementation of a solution for this issue has proven to be more complex than anticipated. Our current timeline estimates a resolution by the end of February 2025.

#30: thank you for the suggestion.

As an update, we continue working to resolve this issue for the various objects that users can add to the map, e.g. GeoJsonLayer (this issue), circle (https://issuetracker.google.com/240485108), polylines, etc.

Google update: code changes to address this issue have been submitted. We are now onto the release process to ship the fix via Google Play services.

We are committed to making the fix available via Google Play services before we start decommissioning the Legacy renderer.

You can add your Google Account to join Google System services public beta program so the devices where you log in with this account will get the Google Play services updates earlier than production releases for your testing/verification.

Hi there,

As mentioned above, I tried the latest update of the Google Maps library 19.1.0 and used Google Play Services Beta, but my Polygon is still hidden under the 3d buildings. Am I missing something here?

I know this ticket is related to GeoJsonLayer, but I read that you would fix all layers after this comment https://issuetracker.google.com/issues/205751273#comment31

Thank you

Yeah, another problem on my side is that we are using the Google Maps Compose Library, which is not yet released, to use the latest Google Maps SDK 19.1.0. Assume will have to wait longer for this too. Will keep an eye on this to see if things change. Didn't expect this fix to come via Google play service, tho.

Google update: Hi everyone, the fix will be delivered via Google Play services automatically to devices. It does not depend on the client library version (e.g. 19.1.0) you built your app with, and you don't need to rebuild your apps.

However, the fix does not make it to March 3. We estimate it will be available around the beginning of April. We will update here again once we have more detail about the rollout.

Until that time, apps can still specify the Legacy renderer.
