Nathan,

Would you please evaluate the changes proposed in comment9 and let us know if you see any problems/issues apparently.

Meanwhile, Compal did the VIF comparison with Brya. Do we have anyone who can take a look at the PDO configuration in comment9?

Note: Compal has no chances to run full validation on PD compliance with the changes in #9 since the debug/validation time is out of the timeframe of GRL EV test contract. It would be appreciated if you could take a look from code flow perspective and shed light on it.

Thank you.

Hi nkolluru@, Friendly ping.

RE#13:
ACK, reviewing logs now.

There are a couple of issues here, documenting now so I don't forget.
These issues aren't strictly related to the failure, but they emerged during review.

Please don't view this as a comprehensive analysis of this issue.
(I will refer back to these numbers when stating issues further down.)

1. There are no bounds-checking for "USB-PD revision" when extracting the power field bits in crrev/c/3592313
   https://chromium-review.googlesource.com/c/chromiumos/platform/ec/+/3592313/12/common/usbc/usb_pd_dpm.c#736
2. There are no checks for CapMismatch ("op_curr" versus "max_curr") fields
   https://chromium-review.googlesource.com/c/chromiumos/platform/ec/+/3592313/12/common/usbc/usb_pd_dpm.c#737
3. There are no checks (or accounting) for Sinks with "GiveBack" support
4. There are no checks (or accounting) for Sinks that issue REQUEST message (CapMismatch=0)...
   ...with OpCurr of "1.5A (I will use this right now)"...
   ...but MaxCurr of "3.0A (I will request up to this amount very soon)".
   https://source.corp.google.com/search?q=common%2F%20RDO_CAP_MISMATCH%20-fpmcu&sq=&ss=piper%2FGoogle%2Fchromeos_public

The lack of RDO_CAP_MISMATCH checking in DPM static void balance_source_ports(void); is most concerning.
Because this bit changes the decoding of the entire packet, and the meaning of the fields.

A TBT3 partner may see 1.5A -- issue Request with 0.5A OpCurr, but 3.0A "DesiredCurr".
And the Chromebook will never "balance" to give it more, (based on my current reading of code).

• https://source.corp.google.com/chromeos_public/src/platform/ec/common/usbc/usb_pd_dpm.c;rcl=c020eb91f162c7d77aa6ffba0f0b97412e371f30;l=635

It seems sink_max_pdo_requested is only set based on the SinkCap.
Not even the "Request (CapMismatch=1) (DesiredCurr=3.0a)", if there is one.

• sink_max_pdo_requested in dpm_evaluate_sink_fixed_pdo() function.
  https://source.corp.google.com/chromeos_public/src/platform/ec/common/usbc/usb_pd_dpm.c;rcl=c020eb91f162c7d77aa6ffba0f0b97412e371f30;l=769
• PDO_FIXED_CURRENT macro
  https://source.corp.google.com/chromeos_public/src/platform/ec/include/ec_commands.h;rcl=94f92cd7f12736e9b59e0fd399d5663789019b22;l=6858

This seems like a bug.

Reading from [06-25-21] USB PD Compliance Package (no longer on USB-IF usb.org Documents site)...
...directory name PD_2.0_Compliance_Package_09262018...
...file name Deterministic PD Compliance MOI 1.pdf:

There is not support in Compliance testing for "Dynamic Source Port Balancing".
In fact, "Shared Capacity" testing is poorly written, or not included at all.

3.13
POWER SOURCE/SINK PRIMARY TESTS

3.13.1
TDA.2.3.1.1: BMC-POW-SRC-LOAD-P-PC Source Dynamic Load Test, Provider or Provider/Consumer

(...)

4. The Tester gets the UUT into PD Mode (PROC-PD-MODE), initially requesting PDO#1 at 100mA.
5. Wait until a Source Capabilities message is received, note the number of Power Data Objects, and record their contents.
   a. Check that they are identical to the list provided by thevendor [BMC_POW_SRC_LOAD_P_PC_1].
   b. If at any time during the following steps a further Capabilities message is received, the PDOs shall be compared to the previous ones.
   c. If they differ, report the details, and the test ends as a failure.

CrOS EC dynamic balancing (as I read/interpret) will fail

• (5a) due to first advertising [5v/1.5a] (pre-Request)
• (5b) if for some reason GRL's "100ma" REQUEST [with unknown CapMismatch/MaxCurr] or SNKCAP [unknown] triggers change
• (5c) due to readvertisement/balancing, period.

I'm not sure what the AI is here. PD2.0 compliance is deprecated.
There's not really a way to "fix" this, since USB-IF CTS test plan is frozen.
At best, we could add hacks/"compliance mode" in CrOS EC to work around this and "get the green light to light up on the tester box".

• Also, we won't be addressing /actual/ failures like illustrated in RE#15.

Where do we want to devote our Engineers' valuable time, and labor here, ansontseng@?

Per GVC with ansontseng@:

Shortest path forward is a "compliance mode" command in EC.
That forces policy flag to 3A (on until disabled/always-on) for port under test.

Again, any sort of dynamic CB port behavior will run afoul of legacy test step (5c).

• There are other "proper" fixes discussed, such as coding full-blown "Shared Capacity" and "GoToMin" features.
• But these are "Feature Requests", not "bug fixes". So likely will be punted to a future CrOS EC / Zephyr release.

Thank you Nathan for the analysis and technical advice.

Abe / Caveh,

It seems a problem across Brya devices based on the current CrOS dynamic balancing mechanism. While we are waiting for the clarification(#17) from Intel TBT team, would you please evaluate #18 with a compliance mode command in EC to workaround the 5V/3A test cases PD 2.0 TDA.2.3.1.1 and TDA.2.3.1.2. or any possible workaround to help partners proceed?

Added Brya TPM Chinmay and TL Alex for vis.

Hi Abe,

I temporarily assign this to you since Caveh is OOO. Please feel free to point me to the right owner from EC sied to explore any workaround as short-term solution to mitigate the PD issue. The same issue is suppoesed to be raised on brya devices or future devices based on the analysis in #15 amd #16.

Thank you.

The TBT4 EV requires PD3.0 qualification and the PD3.0 defined by USB-IF is designed to be fully interoperable with PD2.0.

Enzo: I think Nathan's point in #comment16 is that the tests listed in this bug are part of the PD 2.0 compliance package, and that package is deprecated by the compliance WG and replaced with the merged USB Power Delivery Compliance Test Specification, which specifies tests for PD 2.0 and PD 3.0. To the extent that those tests fail with behavior that complies with the PD 2.0 spec, the tests will never be fixed.

Looking through USB PD CTS 1.4 v3 OR, 2022-04-22, I think the analogous tests (run with PD 2.0 as well as PD 3.0) would be something like COMMON.CHECK.PD.7 Check Source Capabilities Message, which is performed in various named tests, for instanceTEST.PD.PS.SRC.2 PDO Transitions.

I think we would probably fail COMMON.CHECK.PD.7 for the same reason as we fail TDA.2.3.1.2. Specifically, we would fail step 4.k B9...0 (Maximum Current), case ii.1, which expects Maximum Current equal to Src_PDO_Max_Current1. But at least it's possible that this test could be changed to accommodate our behavior, which I believe is actually compliant with the PD 2.0 spec in this regard.

Shortest path forward is a "compliance mode" command in EC.

Would you want an EC shell command? A host command with a way to trigger it from ectool? Would the condition need to survive a reboot?

I would propose that instead of a "compliance mode" command, we:

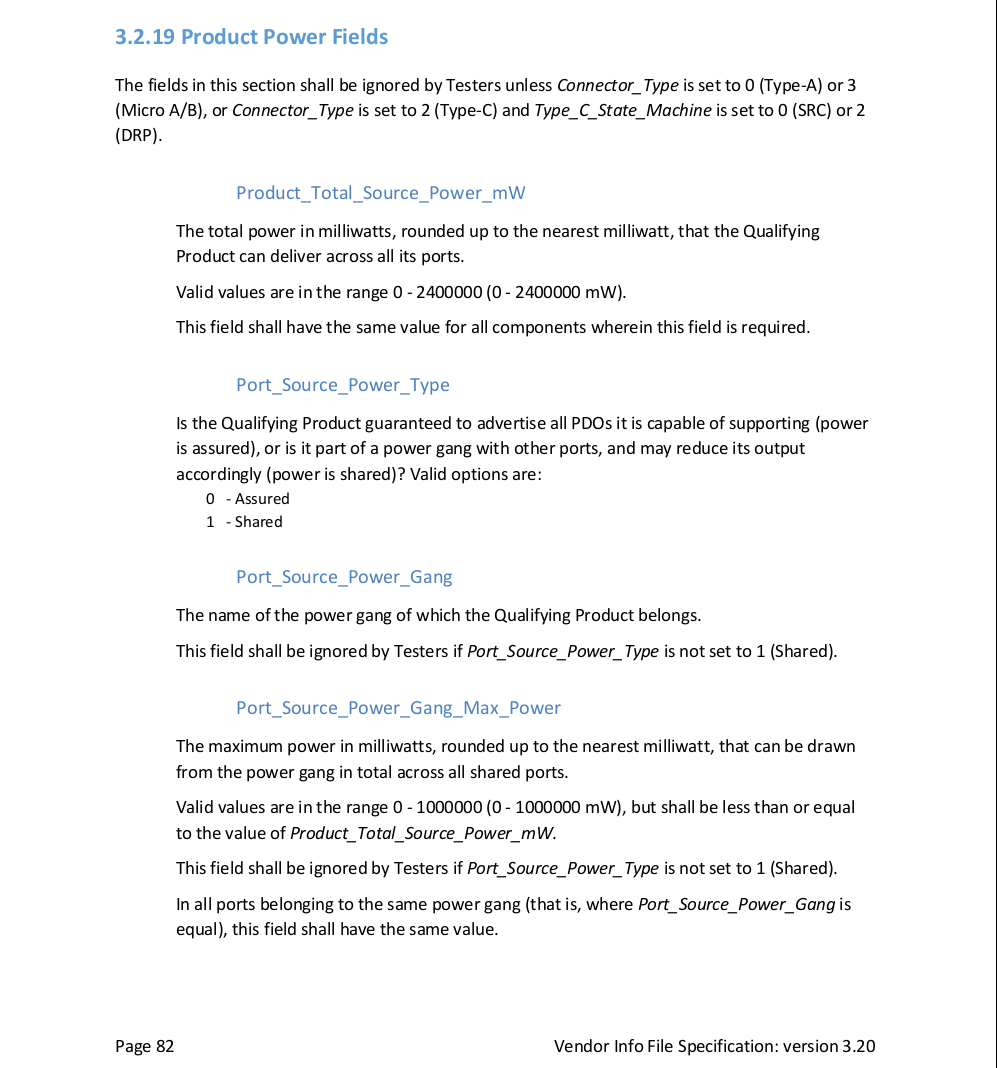

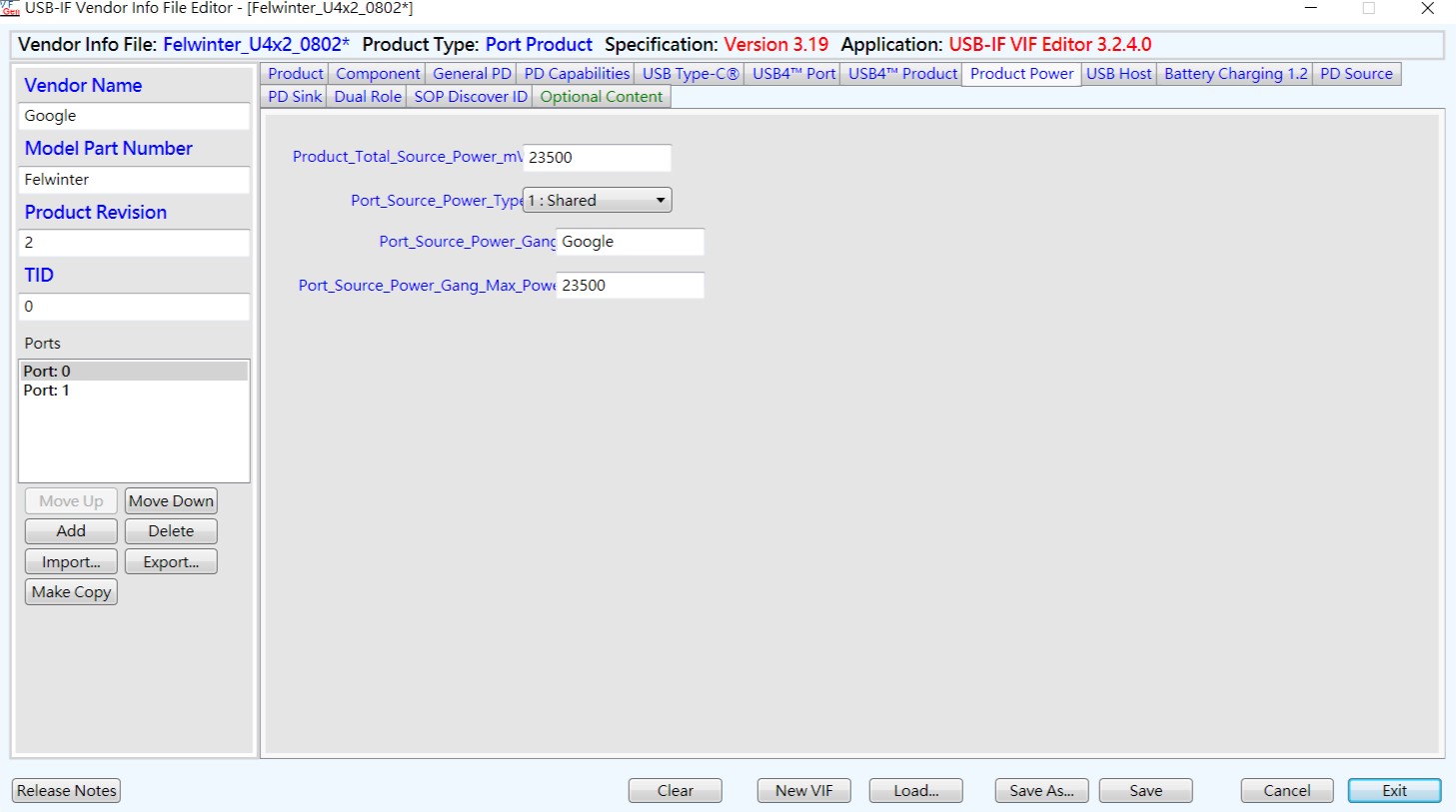

• Correct our VIF to report we're a shared power source
• Implement the BIST Shared Test Mode commands required for a shared power source

This would bring our stack into greater compliance, and should ensure the suite runs more smoothly if I read TEST.PREP.PR.1 Preparation for Bring-up Source UUT correctly in the most recent compliance test spec.

Thank you dzigterman@ and alevkoy@. Will you work on the changes proposed in #23?

I may have cycles to work on this in the next couple of weeks if there are resources available to test out the code and suggested VIF changes.

How urgent is this issue? If it's immediately blocking an essential board phase, then perhaps a brya EC engineer should work on it

Caveh, do you have time to take a look at this?

To implement BIST shared test mode, we'd want:

• DPM changes to support the mode
  • APIs to enter and exit BIST shared test mode
  • APIs could attempt to either change around the variables tracking which ports may use maximum power, or short circuit all of the port power balancing considerations when in shared mode
• PE changes for shared test mode
  • New processing to pe_bist_tx_entry() to enter and exit shared test mode (reference spec section 6.4.3.3 BIST Shared Capacity Test Mode)
  • Shared test mode should cause us to return to a Ready state, not remain in the BIST state
• VIF changes to correctly report that we're a shared charge source
  • We'll probably want to make all ports capable as acting as a "master" port, but I'll leave that to you
  • Ports should report themselves as "shared" and within the same gang
  • Gang power should be the maximum power we can supply in total

I don't believe the GotoMin feature mentioned in comment #18 should be a requirement to pass these tests. It's listed as a "should" message to support, rather than a "shall" in Table 6-76 Applicability of Control Messages.

hi,
no spare cycles here - mostly working on ghost/squall these days. based on #28, this looks complex enough where someone more involved in our PD stack should take over.

Does brya have any assigned EC engineers at this point?

Hi @chinmaym @levinale,

Since it's an issue across all Brya siblings(#15 and #16), would you please help to check the internal resource from Brya team? The issue not only block Felwinter TBT sku but also impact the furure devices which may apply for TBT cert.

Thank you.

If brya doesn't have any assigned resources, I can try coding this next week after we've sorted out our skyrim proto boot issues.

Thank you Diana for the help. It would be appreciated if we could make some progress next week. Thanks!

I plan to get the BIST shared mode coded with a unit test in the next day or so. I don't have the ability to execute an actual compliance run this week, but I'll post recommendations for how the VIF should change to indicate our shared power pool when the code is posted.

EC change to enable BIST shared mode here: https://chromium-review.googlesource.com/c/chromiumos/platform/ec/+/3789835 (other CLs on the stack are to set up unit testing for the mode)

VIF changes suggested:

• Master_port set to "true" for all ports
• Product_Total_Source_Power_mW set to (number of USB-C ports * 7.5) + 7.5 W (ex. 22.5 W for a 2-port system)
• Port_Source_Power_Type "shared" for all ports
• Port_Source_Power_Gang set to some shared name for all the ports
• Port_Source_Power_Gang_Max_Power set to the same as the Product_Total_Source_Power

Re #36

• Master_port set to "true" for all ports.

• Product_Total_Source_Power_mW set to (number of USB-C ports * 7.5) + 7.5 W (ex. 22.2 W for a 2-port system)

These modification as attached

<vif:Master_Port value="true" />
Product_Total_Source_Power_mW value="23500">23500 mW</vif:Product_Total_Source_Power_mW>

I have no idea to modify bellowing item? What mean "shared" in Port_Source_Power_Type? Could you please share some advice?

* Port_Source_Power_Type "shared" for all ports
* Port_Source_Power_Gang set to some shared name for all the ports
* Port_Source_Power_Gang_Max_Power set to the same as the Product_Total_Source_Power

Those will come from the "Product Power" section. The type is this one right now:

<vif:Port_Source_Power_Type value="0">Assured</vif:Port_Source_Power_Type>

And would need to be "shared". I believe once you've selected that, the VIF editor should prompt you for the power gang information. I attached a screenshot of the relevant VIF spec section for your reference.

Re #38

Attached is the VIF that modified.

Is that setting correctly?

Thanks

I believe your power should be 22500 total rather than 23500 since that gives 15W for one port + 7.5 W for the other port. Otherwise, it looks good! Let me know how it runs on the compliance tester.

re #42,

Hi Annie,

The 14505.192.0 is on CPFE now, but it not include the cls in #43~#45.

now that BIST shared mode support has landed, should we enable Master_Port in our VIF files (and update genvif)?

Yes, for boards that have a non-zero CONFIG_USB_PD_3A_PORTS

Compal, was testing done to verify the VIF changes?

Do we still need to modify VIF or it is handled by genvif already?

Master_port set to "true" for all ports
Product_Total_Source_Power_mW set to (number of USB-C ports * 7.5) + 7.5 W (ex. 22.5 W for a 2-port system)
Port_Source_Power_Type "shared" for all ports
Port_Source_Power_Gang set to some shared name for all the ports
Port_Source_Power_Gang_Max_Power set to the same as the Product_Total_Source_Power

This is not yet handled for genvif. I believe other boards (ex. crota) have been putting this in their vif_override.xml files.

From comment #51, it appears this issue can be closed
