not reproduced , can you share sample project which will help us to triage this issue

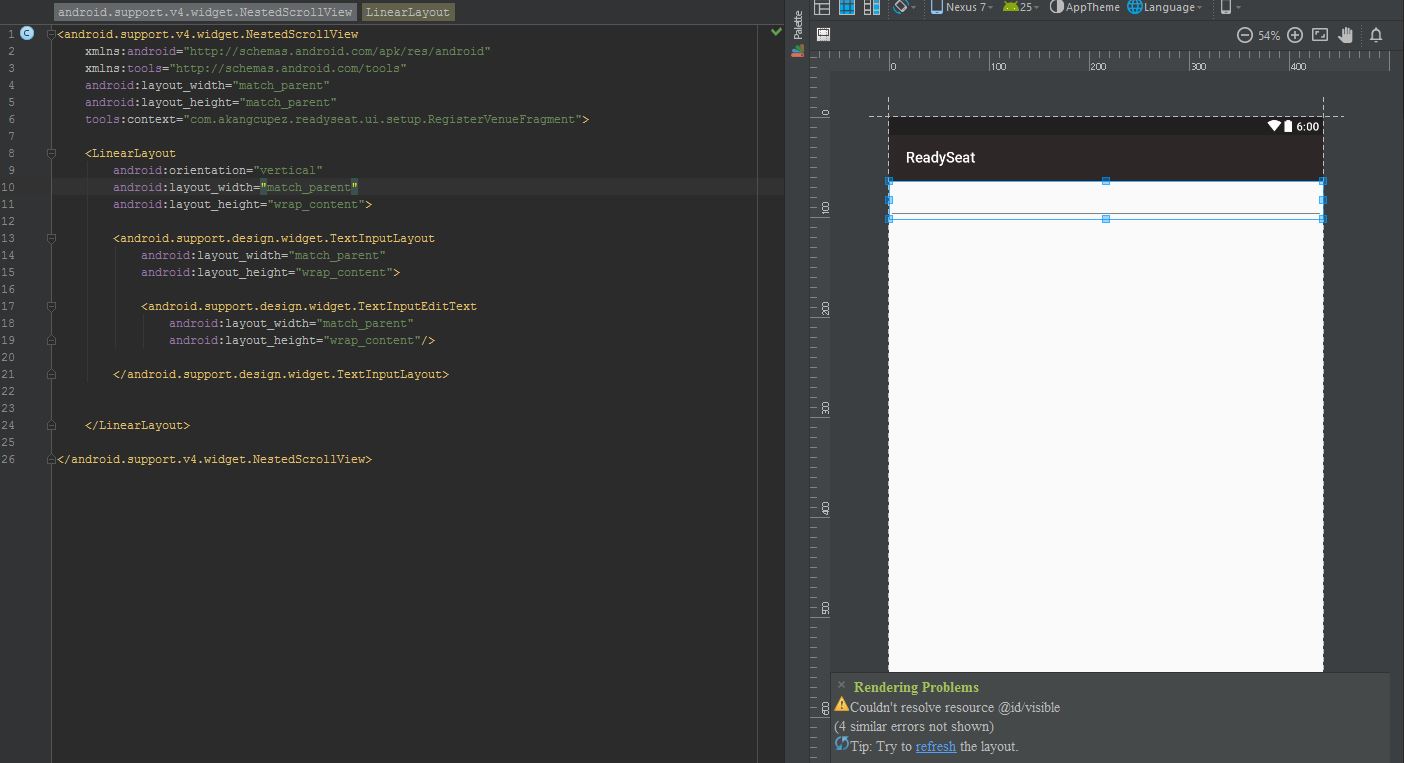

Having the same exact issue here :/, pretty annoying especially working with the preview layout in a nestedscrollview. Any time I close it and scroll through the layout the error appears immediately

I'm having the same issue.

my setup:
android {
    compileSdkVersion 25
    buildToolsVersion '25.0.2'

    defaultConfig {

        minSdkVersion 9
        targetSdkVersion 22

        vectorDrawables.useSupportLibrary = true

        ....
    }
}


dependencies {
    compile 'com.android.support:appcompat-v7:25.1.0'
    compile 'com.android.support:design:25.1.0'
    ....
}


API version in editor: 25.

update:
Using "API version in editor": 19 (in design editor the little green android head, for the newbies) removes the issue, although I see some minor differences in the design output when doing this, shouldn't be much of an issue as you probably only  need to see at high level when developing, you can switch to 25 though from time to time just to have a quick check.

Good luck and I hope it gets fixed (or at least we figure out what we're doing wrong)

+1 i also had to switch to 16 in editor to view without errors.
It happens in a custom view I created.

Had the same problem too.

The error message:

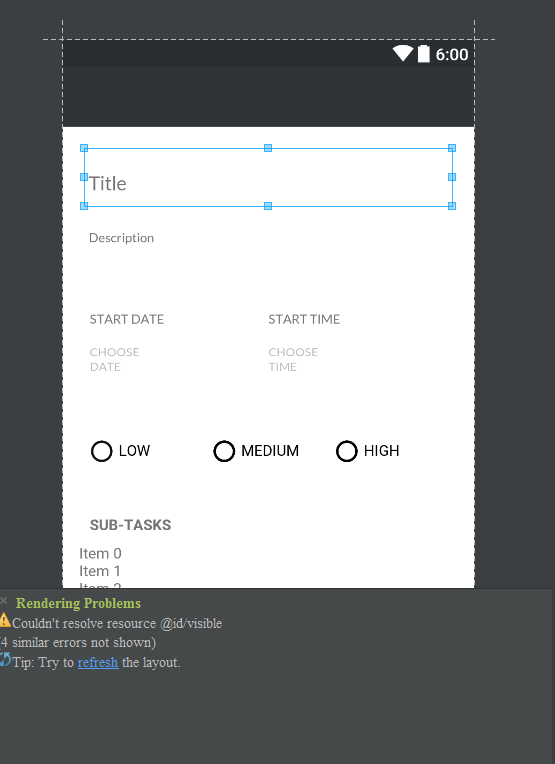

  Rendering Problems
  Couldn't resolve resource @id/visible (4 similar errors not shown)
  Tip: Try to refresh the layout.


build.gradle:
    apply plugin: 'com.android.application'

    android {
        compileSdkVersion 25
        buildToolsVersion "25.0.1"
        defaultConfig {
            applicationId "com.example.android.app"
            minSdkVersion 15
            targetSdkVersion 25
            versionCode 1
            versionName "1.0"
            testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"

            vectorDrawables.useSupportLibrary = true
        }
        buildTypes {
            release {
                minifyEnabled false
                proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
            }
        }
    }

    dependencies {
        compile fileTree(dir: 'libs', include: ['*.jar'])
        androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {
            exclude group: 'com.android.support', module: 'support-annotations'
        })
        compile 'com.android.support:appcompat-v7:25.1.0'
        compile 'com.android.support:design:25.1.0'
        compile 'com.android.support:support-v4:25.1.0'
        compile 'com.android.support:cardview-v7:25.1.0'
        compile 'com.android.support:customtabs:25.1.0'
        testCompile 'junit:junit:4.12'
    }


API version in editor: 25
Android Studio version: 2.2.3

Operating system: Windows 10 Home (64-bit)

Yo, got the same issue!
What's the solution, or work-around?

I just updated to Android Studio 2.3 Beta 3 and still have the same issue with Render problem. Layout fidelity warning. "Couldn't resolve resource @id/visible". Using widget TextInputLayout. and support:design:25.1.0 etc.

Same problem here, with Android Studio 2.3 beta 3, buildToolsVersion '25.0.2', support library 25.1.1.

We have passed this defect on to the development team and will update this issue with more information as it becomes available.

Here also same issue

Rendering Problems  Couldn't resolve resource @id/visible (4 similar errors not shown)  Tip: Try to refresh the layout.

Same issue here using Android Studio 2.2.3 with API 25. Very annoying, pops back up each time I make any minor change in layout :(

Same issue here using Android Studio 2.2.3 with API 25.

This is not the solution but I have added these lines to dimens.xml:
  <Item name = "visible" type = "id" />
<Item name = "masked" type = "id" />
And allowed me to work it normally.

same issue here

Still exists with 2.3 RC

Still exists with 2.3 (today release)

Still exists with 2.3 (today release)

Same here.

Still exists with 2.3 (today release)

Same here.

I've found that is somewhat related to the version of gradle option compile 'com.android.support:design:25.x.x'

The render error shows when using the version 25.2.0

the error disappear when using the version 25.0.1

I had the same problem ""Couldn't resolve resource @id/visible" using TextInputLayout :(

Only worked when I change to support library revision 24.1.1

i have same issue  http://prntscr.com/eiqm71

Had the same issue here.
For the time being, you can just set the +@id/visible to some field or the tview and the message will disappear from all the activities.
Worked for me !!

Still happening under Android Studio 2.4 Preview 7 and Support Library 25.3.1

It also happens with @id/masked.

Here also same issue

Rendering Problems  Couldn't resolve resource @id/visible  Tip: Try to refresh the layout.

Same issue here ..

Android Studio version: 2.3.2, API level 17.

same here.  can't remember when it first started, but it has been happening for a while now.

Same here. Rendering issue for android API 25. Please suggest something to work on!!

Getting the same issue on 2.3.3, compiled at API 25, support library 25.3.1.

Same here on API 26!

Same on API 25

Same here on API 26!

I don't know why. Maybe I saw somewhere but it worked for me.I created ids.xml to in values folder and added that:

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <item name="visible" type="id"/>
    <item name="masked" type="id"/>
</resources>

my build.grandle in app's folder includes that
    compile 'com.android.support:appcompat-v7:26.0.0-alpha1'
    compile 'com.android.support:recyclerview-v7:26.0.0-alpha1'
    compile 'com.android.support:cardview-v7:26.0.0-alpha1'
    compile 'com.android.support:design:26.0.0-alpha1'
And
    compileSdkVersion 26
    buildToolsVersion "26.0.0"
    minSdkVersion 16
    targetSdkVersion 26

Same here

You should set 1. android:id="@+id/visible" to android.support.design.widget.TextInputLayout and 2. android:id="@+id/masked" to child of TextInputLayout.

This will help..!

Was this ever fixed? I can't see the bug marked duplicate because I don't have access rights to it.

Not resolved "Couldn't resolve resource @id/visible"
android version: 2.3.1

gradle:
buildscript {
    repositories {
        jcenter()
    }
    dependencies {
        classpath 'com.android.tools.build:gradle:2.3.1'
        classpath 'com.google.gms:google-services:3.0.0'
    }
}
allprojects {
    repositories {
        jcenter()
        maven { url 'https://maven.fabric.io/public' }
    }
}
task clean(type: Delete) {
    delete rootProject.buildDir
}

app:
apply plugin: 'com.android.application'
android {
    compileSdkVersion 25
    buildToolsVersion "27.0.3"
    defaultConfig {
        applicationId "com.example.android.assignfirebasechat"
        minSdkVersion 16
        targetSdkVersion 25
        versionCode 1
        versionName "1.0"
        testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"
    }
    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android.txt'), 'proguard-rules.pro'
        }
    }
}

dependencies {
    compile fileTree(dir: 'libs', include: ['*.jar'])
    androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {
        exclude group: 'com.android.support', module: 'support-annotations'
    })
    compile 'com.android.support:appcompat-v7:25.3.1'
    compile 'com.android.support.constraint:constraint-layout:1.0.2'
    compile 'com.google.firebase:firebase-core:9.8.0'
    compile 'com.android.support:design:25.3.1'
    compile 'com.firebaseui:firebase-ui:1.1.1'
    testCompile 'junit:junit:4.12'
}


apply plugin: 'com.google.gms.google-services'

This was fixed in 3.0. Upgrading to 3.2 will resolve the issue.

Using the latest stable Android Studio (3.2.1), this is still not fixed.
