Android Studio Version: 2023.1.0.0

Emulator Version (Emulator--> Extended Controls--> Emulator Version): 35.2.10-12414864
Hypervisor Version: aehd 131074.0.0

Android SDK Tools: 35.0.2

Host Operating System: Windows 10 Pro for Workstations

CPU Manufacturer:
Intel CPU Virtualization is supported Bare metal 64-bit CPU

RAM: 24441 MB

GPU:
GPU #1
Make: 1002
Model: AMD Radeon RX 6500 XT
Device ID: 743f

Build Fingerprint: Android/sdk_phone_x86_64/generic_x86_64:6.0/MASTER/4174734:userdebug/test-keys

AVD Details:

CPU/ABI: x86_64
Path: D:\Users\tretdm\.android\avd\Android_6.0.avd
Target: default [] (API level 23)
Skin: 360x640
SD Card: 512 MB
AvdId: Android_6.0
PlayStore.enabled: false
avd.ini.displayname: Android 6.0
avd.ini.encoding: UTF-8
disk.dataPartition.size: 2G
fastboot.chosenSnapshotFile:
fastboot.forceChosenSnapshotBoot: no
fastboot.forceColdBoot: yes
fastboot.forceFastBoot: no
hw.accelerometer: yes
hw.arc: false
hw.audioInput: yes
hw.battery: yes
hw.camera.back: virtualscene
hw.camera.front: emulated
hw.cpu.ncore: 4
hw.dPad: no
hw.device.hash2: MD5:7509471b5cce1fb3c64b9b7e05f06b7e
hw.device.manufacturer: User
hw.device.name: Super Small Screen (640x360)
hw.gps: yes
hw.gpu.enabled: no
hw.gpu.mode: off
hw.initialOrientation: Portrait
hw.keyboard: yes
hw.lcd.density: 200
hw.lcd.height: 360
hw.lcd.width: 640
hw.mainKeys: no
hw.ramSize: 2048
hw.sdCard: no
hw.sensors.orientation: yes
hw.sensors.proximity: yes
hw.trackBall: no
image.sysdir.1: system-images\android-23\default\x86_64\
runtime.network.latency: none
runtime.network.speed: full
showDeviceFrame: no
skin.dynamic: yes
skin.path.backup: _no_skin
tag.display:
tag.id: default
vm.heapSize: 32

Steps to Reproduce Bug:

1. Build AOSP 6.0 from source code

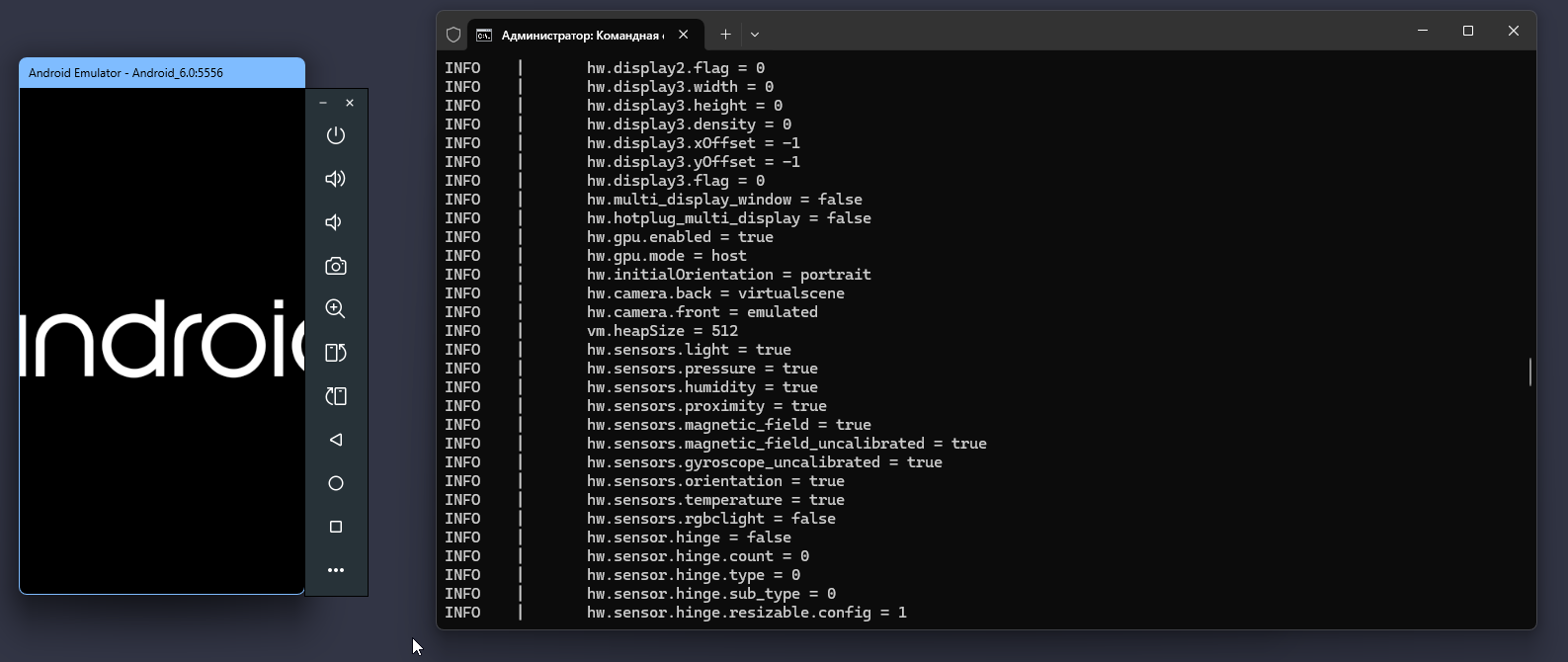

2. Run AVD with built-in system images from terminal

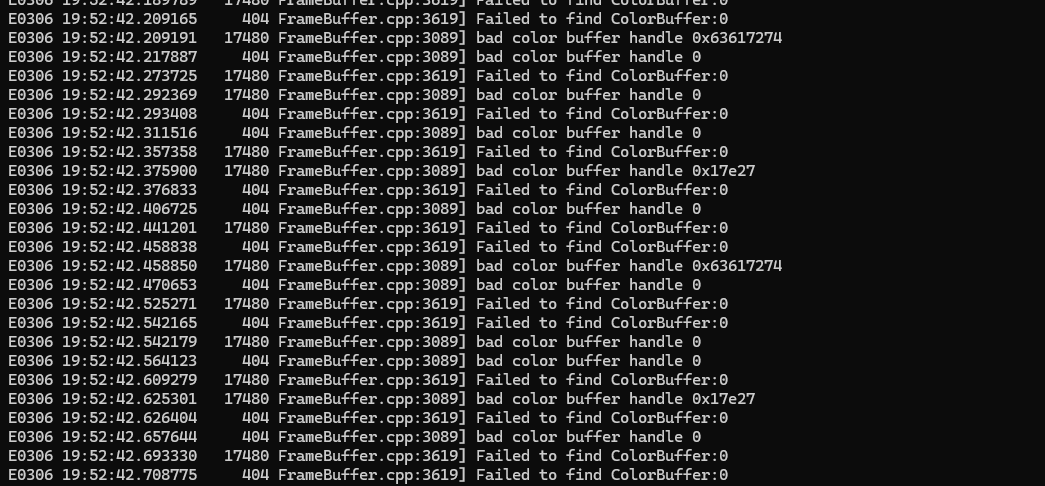

3. Show the output in terminal:

E0306 19:34:26.606393     404 FrameBuffer.cpp:3619] Failed to find ColorBuffer:0
E0306 19:34:26.614166     404 FrameBuffer.cpp:3089] bad color buffer handle 0
E0306 19:34:26.670960   17480 FrameBuffer.cpp:3619] Failed to find ColorBuffer:0
E0306 19:34:26.673333   17480 FrameBuffer.cpp:3089] bad color buffer handle 0x63617274

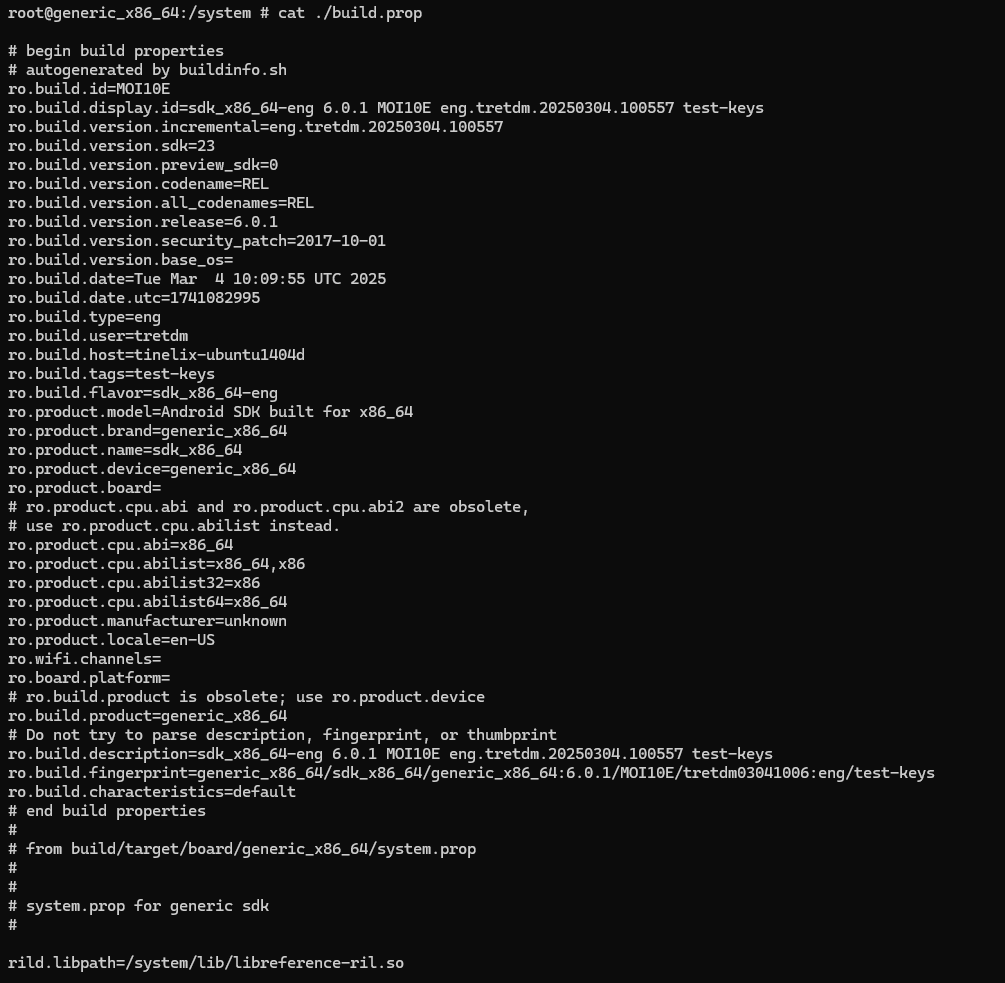

4. Check /system/build.prop file in adb shell.

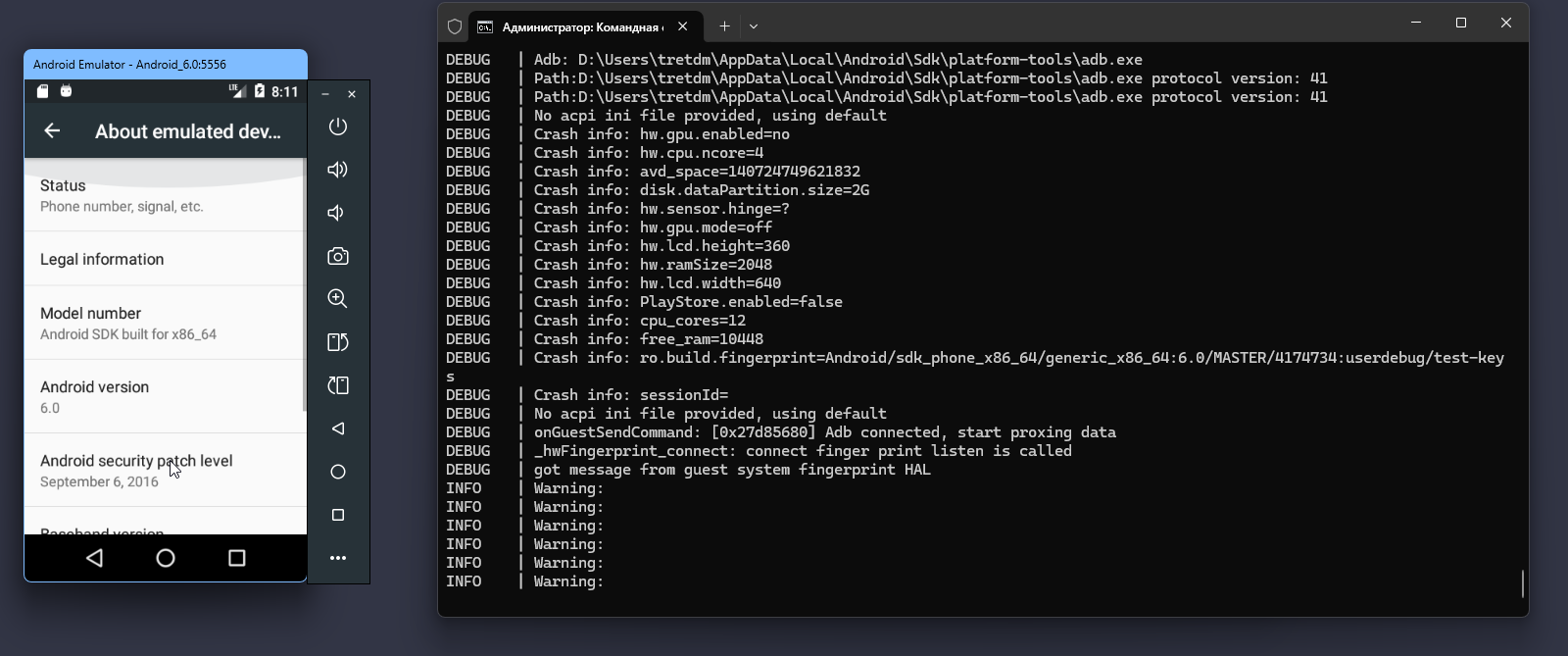

-gpu off flag temporarily solves the black screen problem.

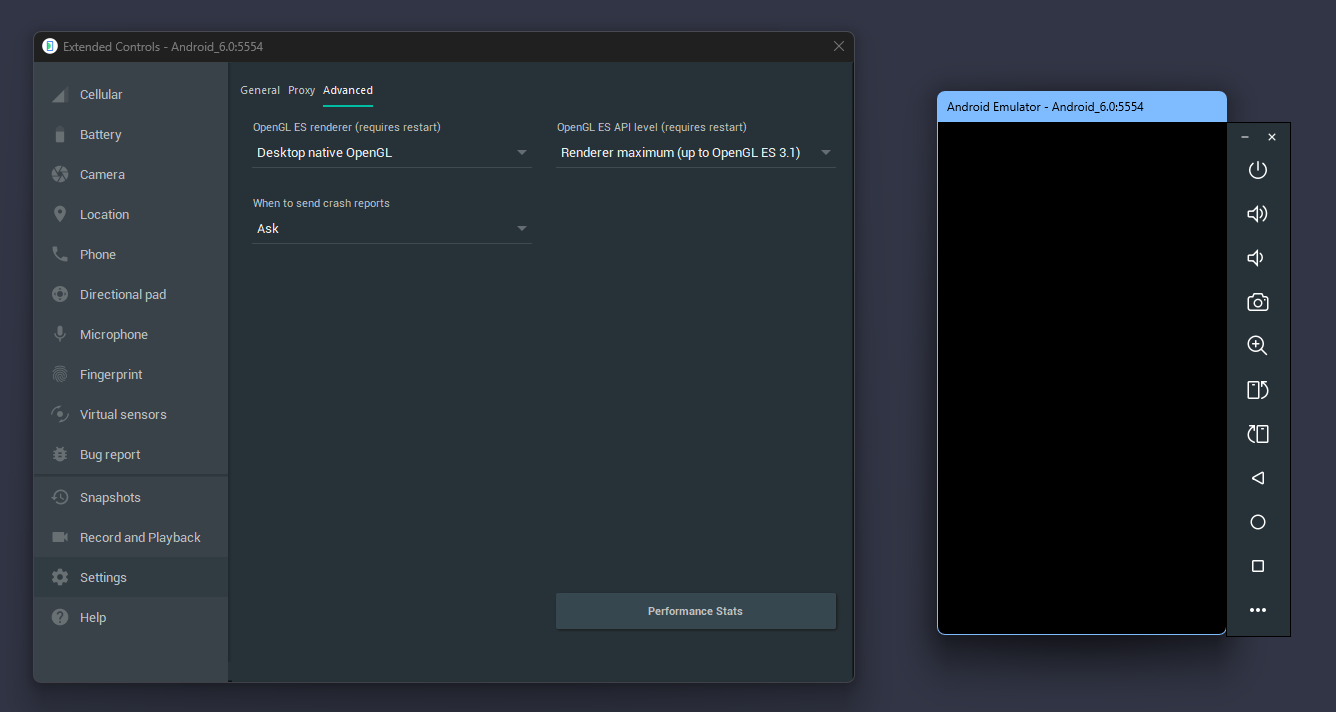

Expected Behavior: An image that should display correctly with graphics acceleration enabled. With ANGLE, SwiftShader and OpenGL, a black screen is simply displayed instead of the system shown. Doesn't work with Vulkan.

Observed Behavior: Black screen if graphics acceleration is enabled for AVD with Android Marshmallow system image built locally.
