Please describe exact detailed steps reproducing the problem.

How do you start the AVD?

Please attach the file produced by Help > Collect Logs and Diagnostic Data.

Error message from the log:

2025-03-21 12:43:38,239 [8487199]   WARN - #com.android.tools.idea.streaming.emulator.EmulatorController - Unable to connect Foxconn (5556)

2.Create AOSP Car Emulator zip file. ( make emu_img_zip)

What lunch did you build? Can you start the Emulator (logcat requires a userdebug build) from the command line with

-verbose -wipe-data -no-snapshot -show-kernel -logcat *:V -logcat-output /tmp/logcat.txt > /tmp/stdout.txt 2> /tmp/stderr.txt

let it run for a minute or two (or logs grow large enough) and attach /tmp/logcat.txt, /tmp/stdout.txt and /tmp/stderr.txt.

If it boots (the logs say Emulator: Foxconn API 34 - Boot completed in 35949 ms), try running adb shell. Maybe adbd is broken.

Please run the command I mentioned above and attach /tmp/logcat.txt, /tmp/stdout.txt and /tmp/stderr.txt.

[ 1.856631] Kernel panic - not syncing: Could not decompress initial ramdisk image.

Linux version 3.18.94+ (android-build@abfarm437) (gcc version 4.9 20140827 (prerelease) (GCC) ) #1 SMP PREEMPT Mon Feb 12 19:55:39 UTC 2018

Did you change anything? This kernel looks ancient.

7. Start Android studio of version Android Studio Koala Feature Drop | 2024.1.2 Beta 1 and start/run the same avd. Screen mirroring is working fine.

n.vadher@dxc.com, do you mean that you can see the running emulator via screen mirroring but it doesn't show on Android Studio embedded screen?

Can you confirm whether you are able to launch the emulator in stand-alone mode?

• Close your project in android studio

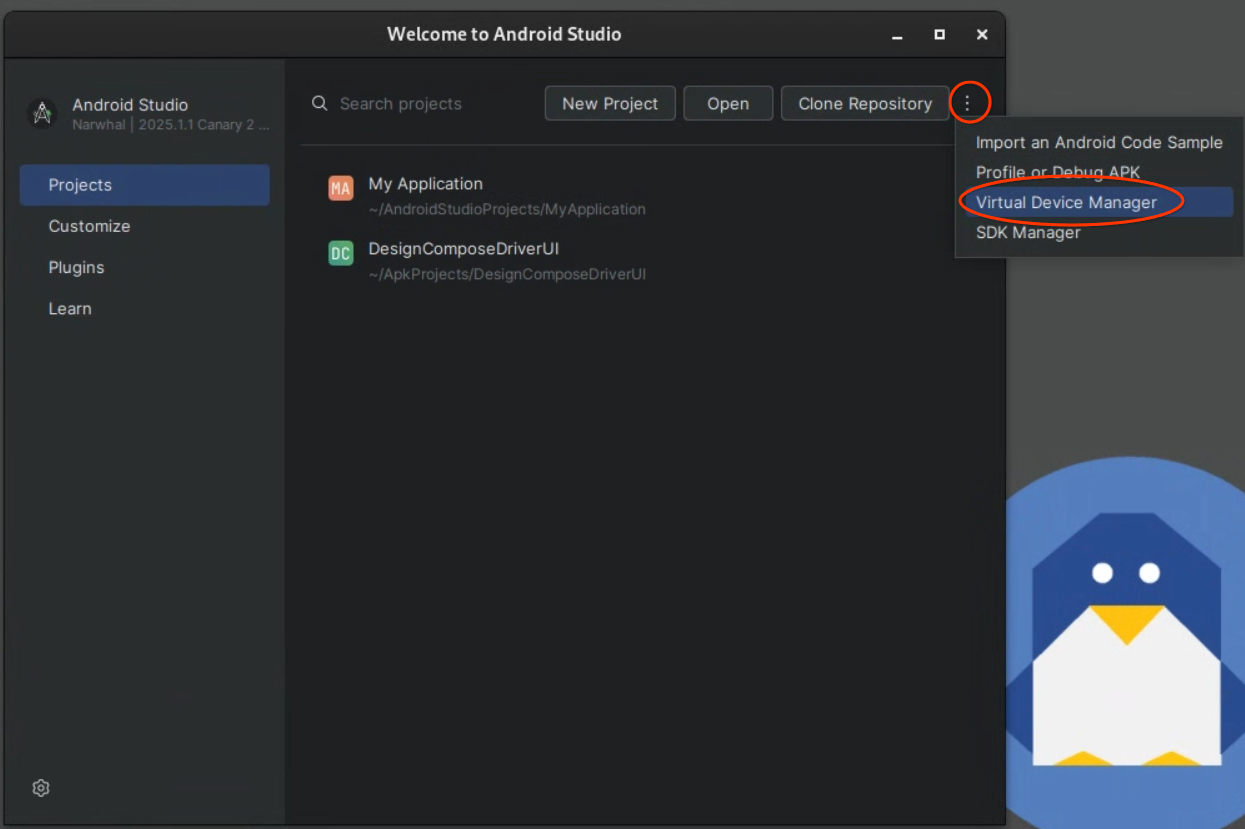

• Open virtual device manager via 3-dots menu on right top (refer to stand-alone-vitual-device-manager.png)

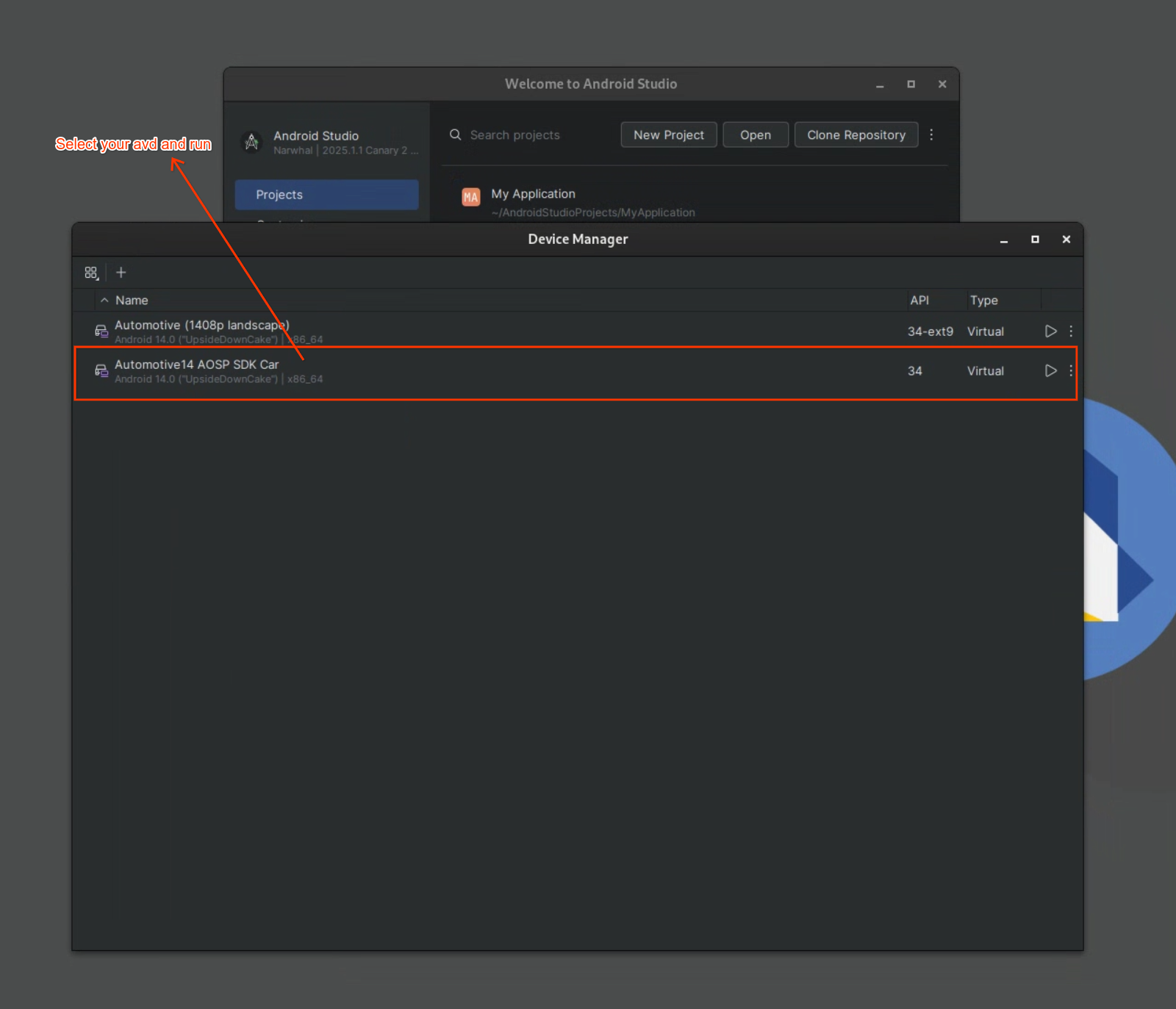

• Select your avd in the device list (refer to run-device.png)

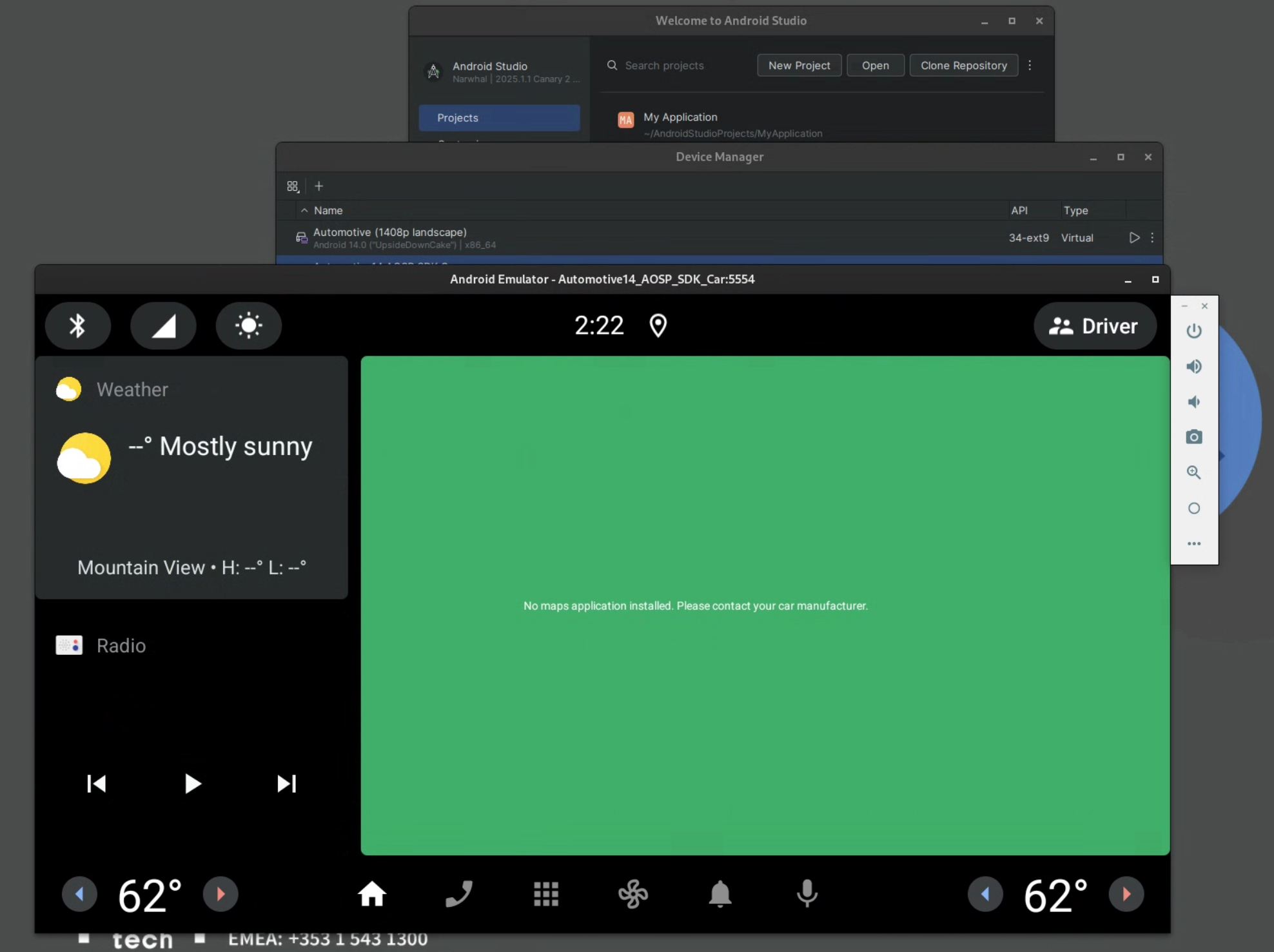

• Confirm the emulator is launched on stand-alone mode (refer to launched-android14-sdk-car-.png)

Thanks for the confirmation.

Let's clarify one more thing.

@n....@dxc.com, could you please confirm whether the local emulator is launched in your android source tree? This time, please make sure to build without "emu_img_zip".

• Build emulator

source build/envsetup.sh
lunch sdk_car_x86_64-userdebug
USE_RBE=false m -j64

• Launch emulator

emulator -cores 4 -memory 6144 -no-snapshot

Thanks for the confirmation.

Summary

• No issue on local build
• No issue on stand alone emulator in android studio
• Emulator doesn't show up on AS embedded mode even if we can see it through mirroring.

Confirmed that the issue has gone with attache patch. Please try.
